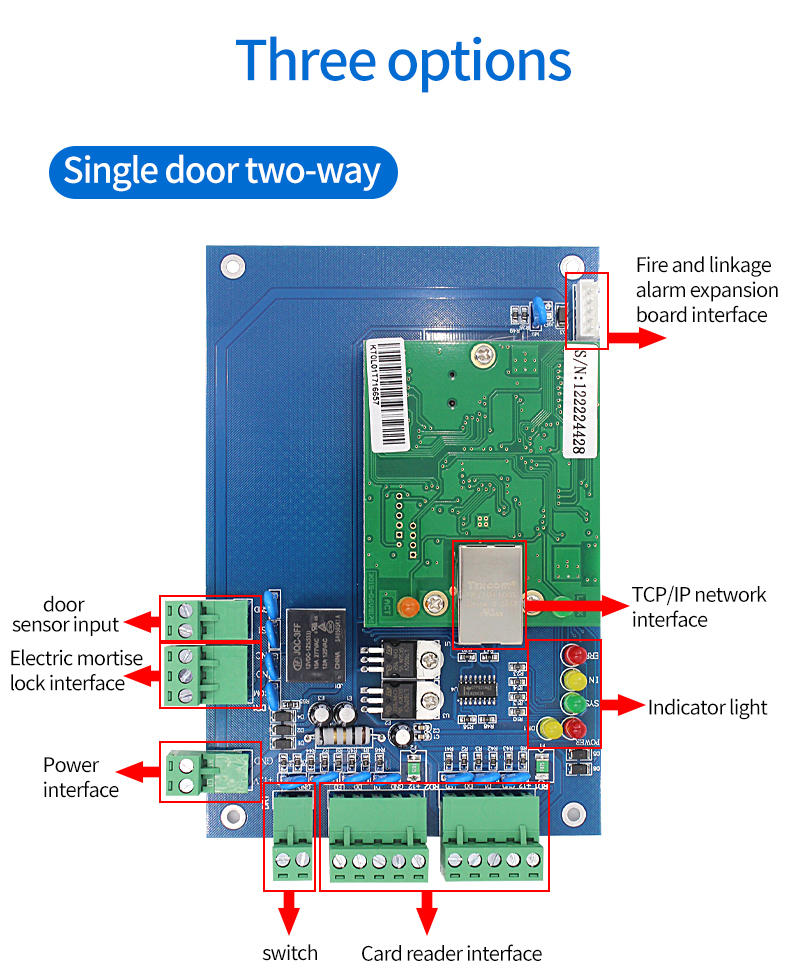

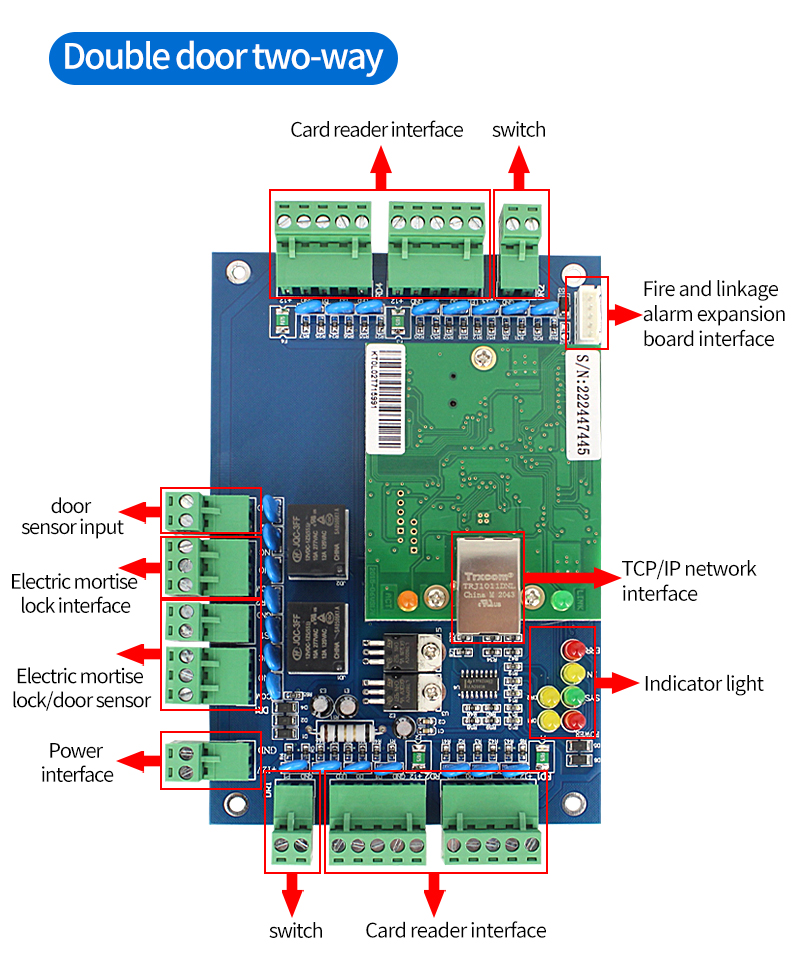

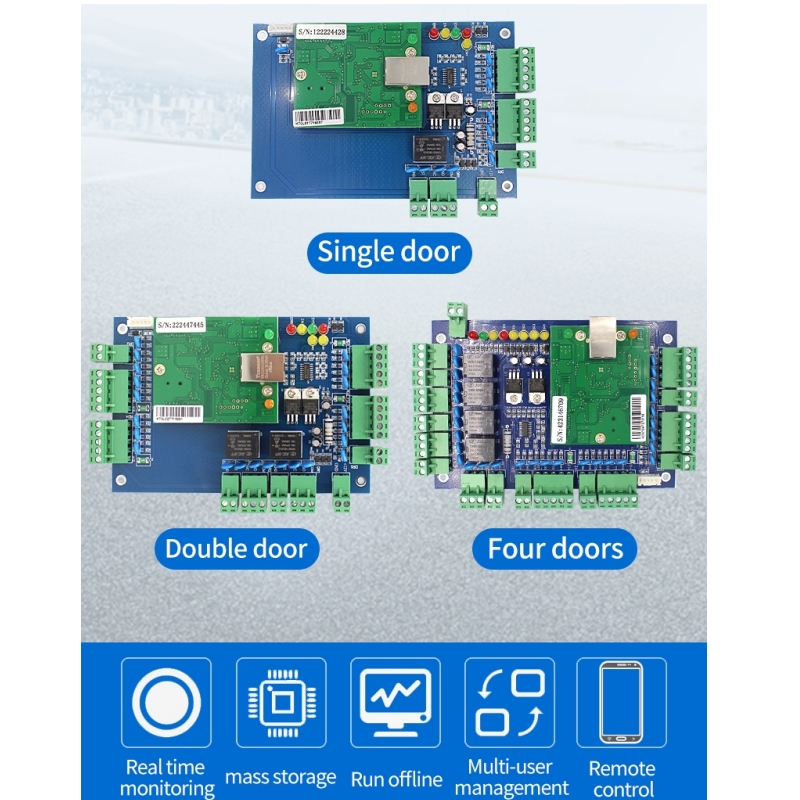

1 ,2, 4 Door Access Controller

This 32 series is economical TCP/IP network access controller, adopting 32-bit ARM embedded industrial grade design, including 1-door, 2-door and 4-door models. It is compatible with Wiegand 26~40 protocol card readers, equipped with complete access control management, safety linkage and extended functions. Widely used in office buildings, factories, parks and other places for personnel access management.

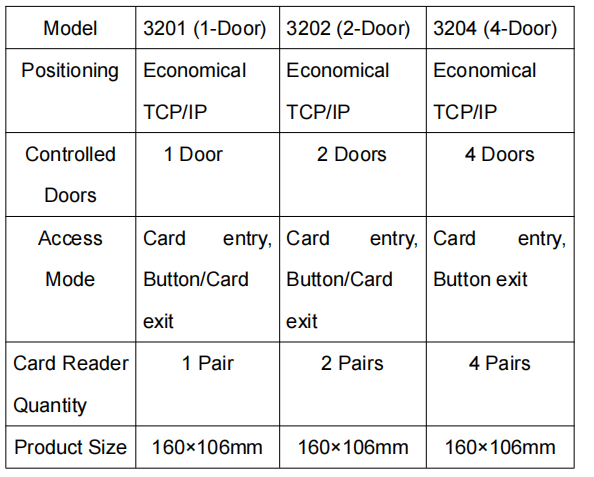

    1.Model Selection

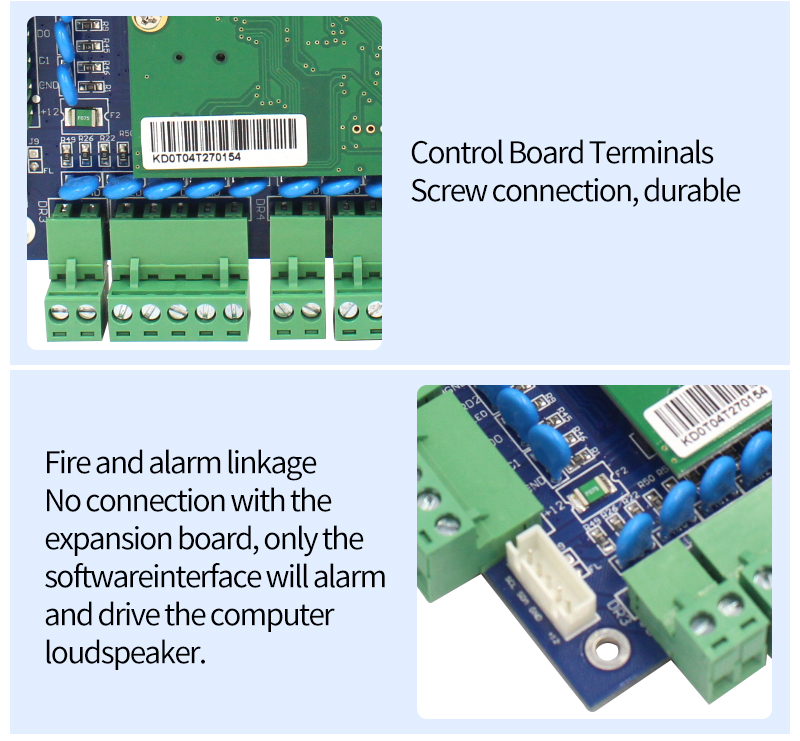

2.Advantages

· Industrial 32-bit ARM embedded design
· Offline independent operation without computer
· Built-in web server, free LAN browser management
· Large capacity: 20,000 users & 100,000 access records
 · Complete safety linkage: Fire, duress, anti-pass back, interlock function

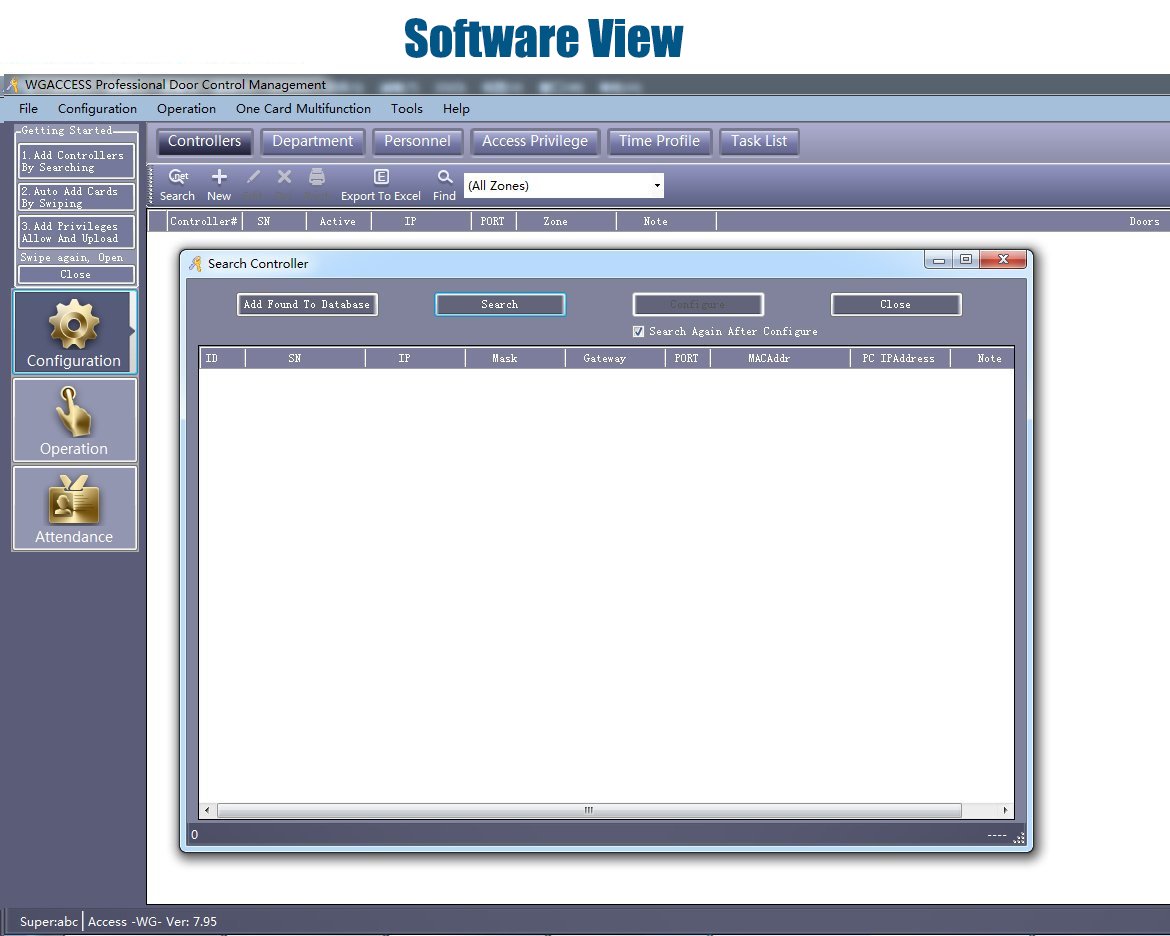

· Free C/S management software & secondary development interface support

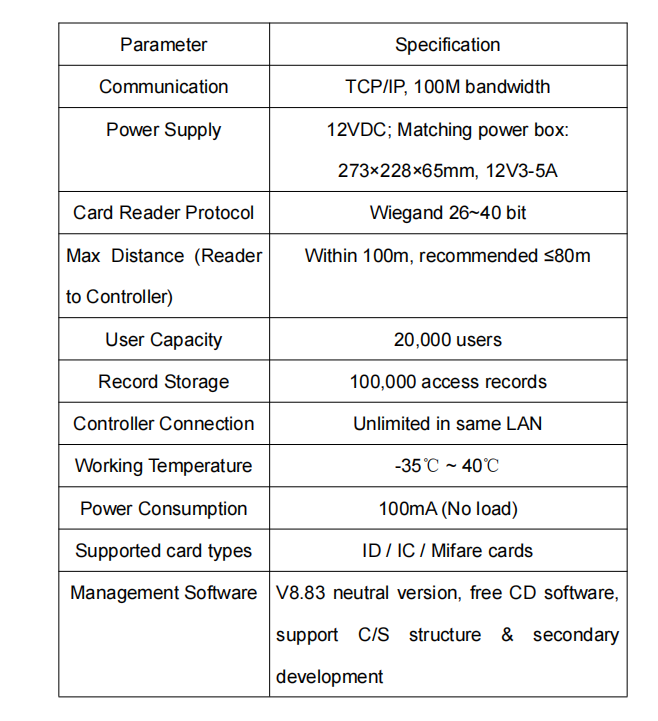

     3.General Technical Parameters

4.Main Functions

Basic Functions  Time period, holiday and timing task management
 First-card unlock: Only designated first card can activate door access for all users
 Multi-card unlock: Multiple authorized cards required to open one door
 Remote door open, scheduled door open
 Anti-passback, door interlock function
 Duress alarm, fire linkage

Extended Functions
 Web network control, manage via browser in LAN
 Support offline operation and real-time monitoring
 Support external alarm linkage expansion board
 Reserved interface for secondary system development

5.Installation Instruction

 Card reader wire: Shielded twisted pair, max distance ≤80m · Strong & weak current wiring separated, not laid in same pipe

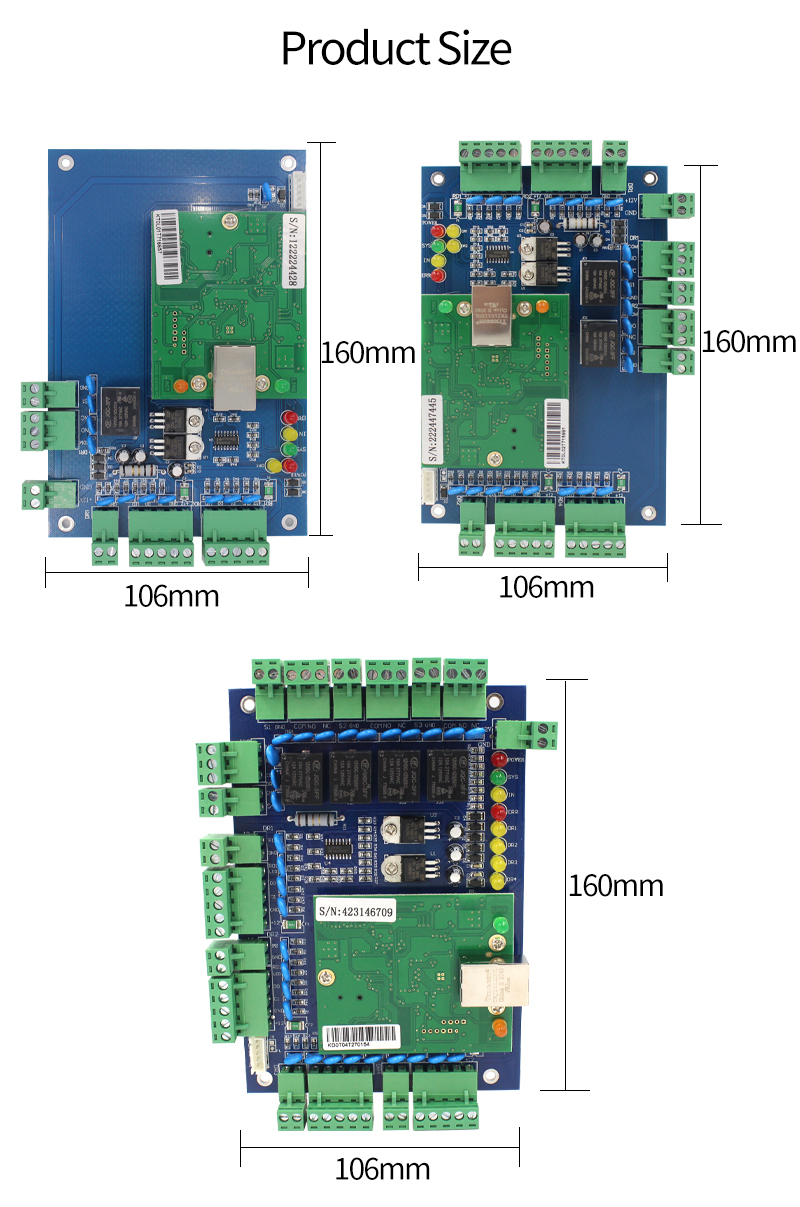

· Door lock wire recommended wire gauge ≥0.75mm² · Wall mounting: Reserved mounting hole size diagram

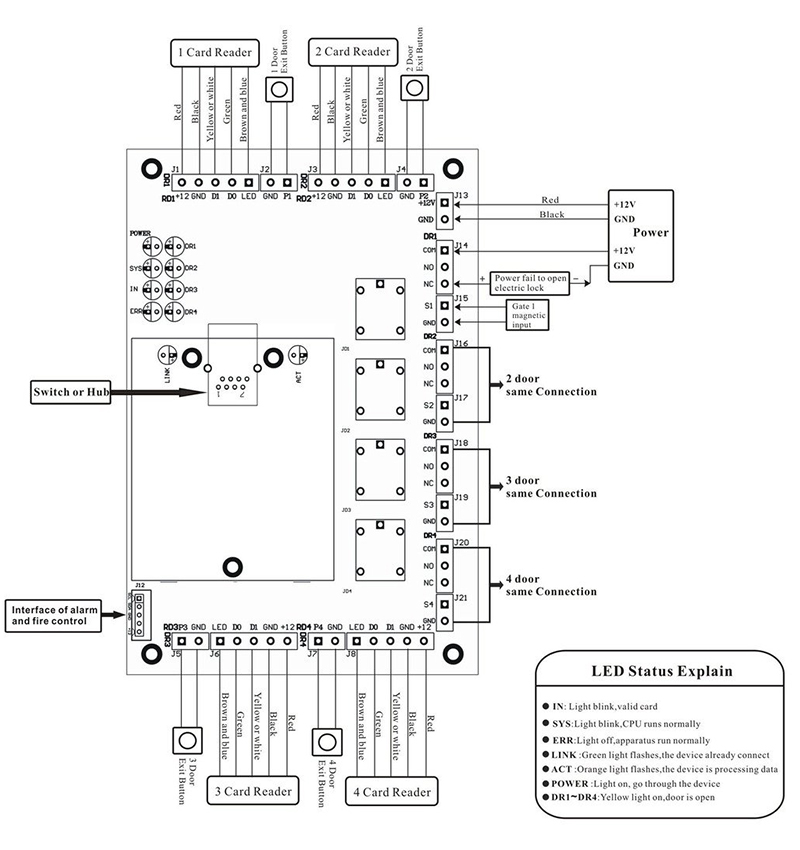

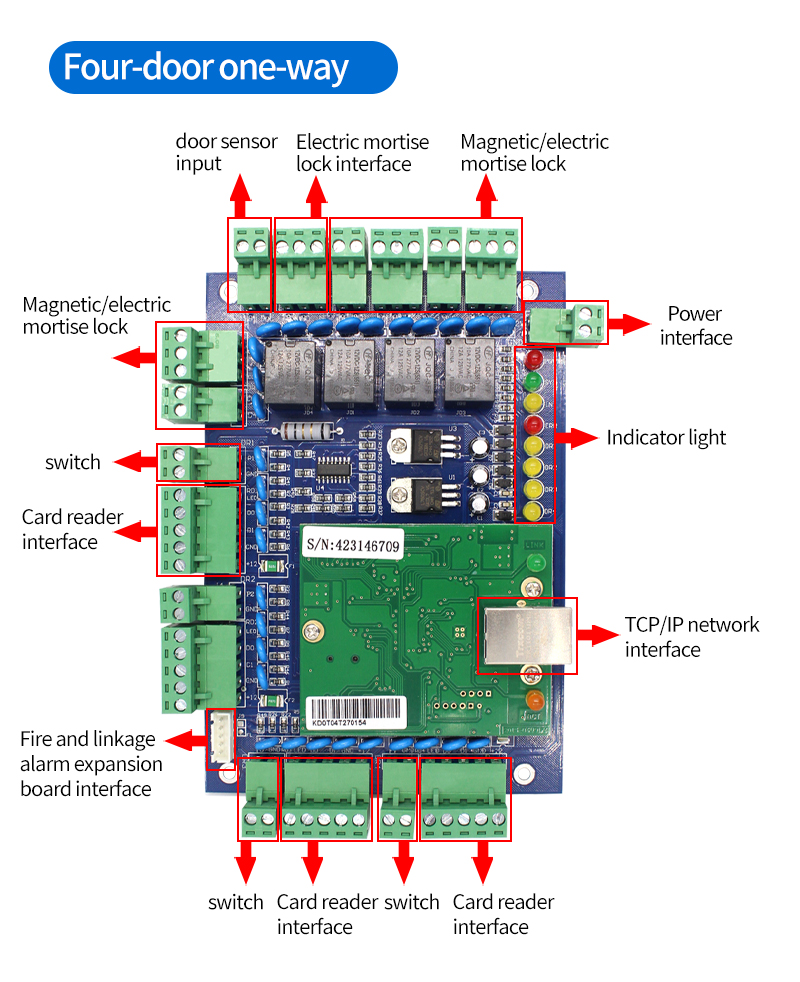

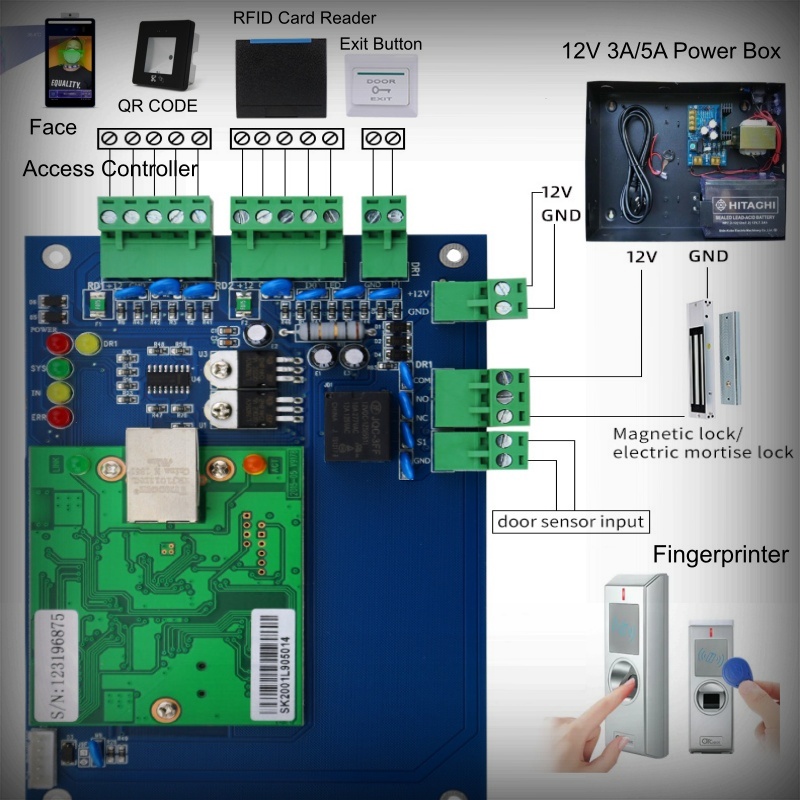

Controller Wiring Diagram

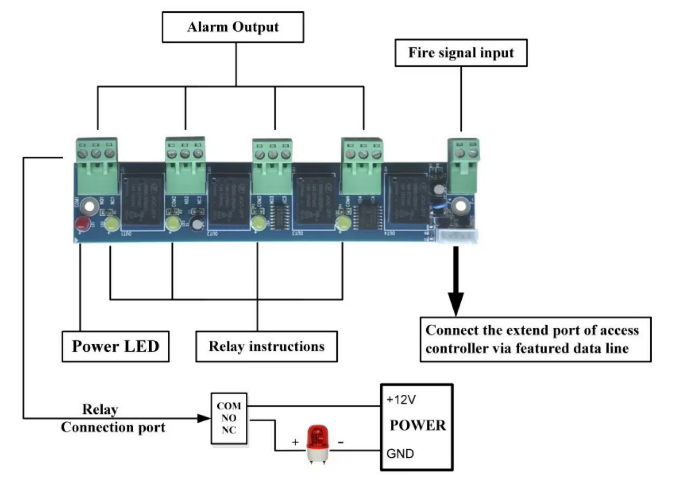

Fire Alarm Wiring Diagram

6.Application

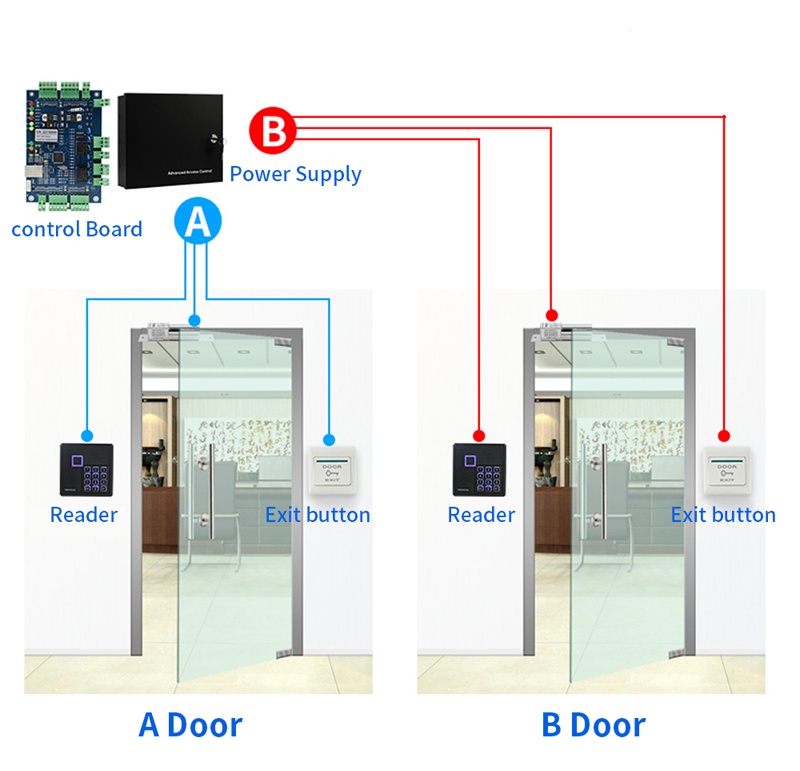

7.Project Case
