Elevator,Cabinet Muti Door Controller

The EV-20S is a TCP/IP network controller, designed to manage and restrict floor access for elevators or cabinet door. It adopts a modular design with a main board + extension board structure, supporting up to 40 floors/doors. Widely used in office buildings, residential complexes, and commercial facilities, it enhances elevator security and management efficiency.

Features:

Normal management of the Access Control are "One for One", that means one card reader control one door.
Valid card can open the door, invalid card can not open. But we can found that in many fields,
"One for More Controllers" are needed. Such as: Lift or cabinet
Sintronic lift elevator controller is consist of main controller +I/O board and can apply the functions of  when people swiping card the elevator will open the gate in the appointed floor
Elevator / Cabinet Controller
Can use for lift elevator or storage cabinet one to more access control

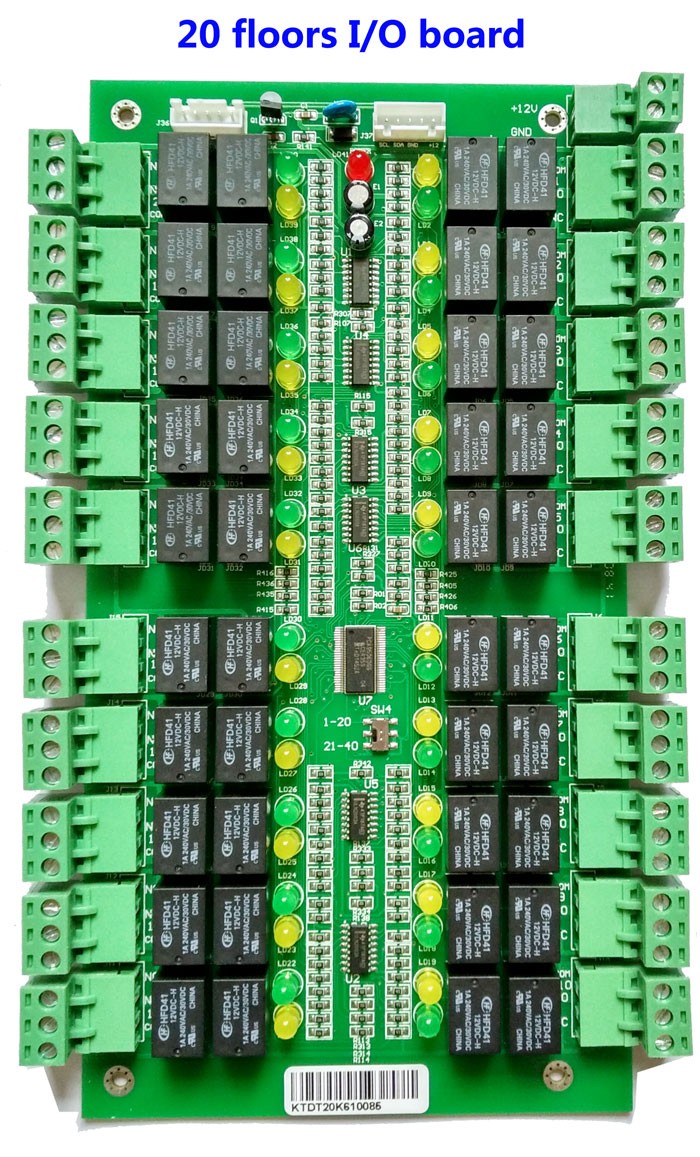

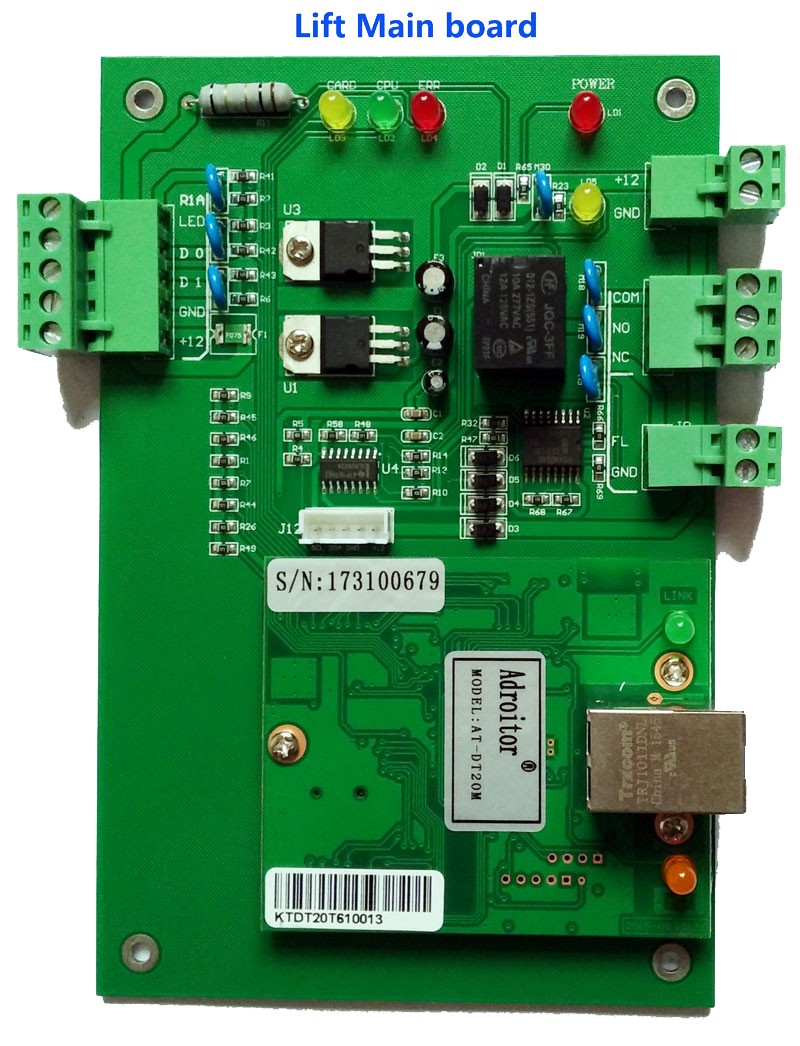

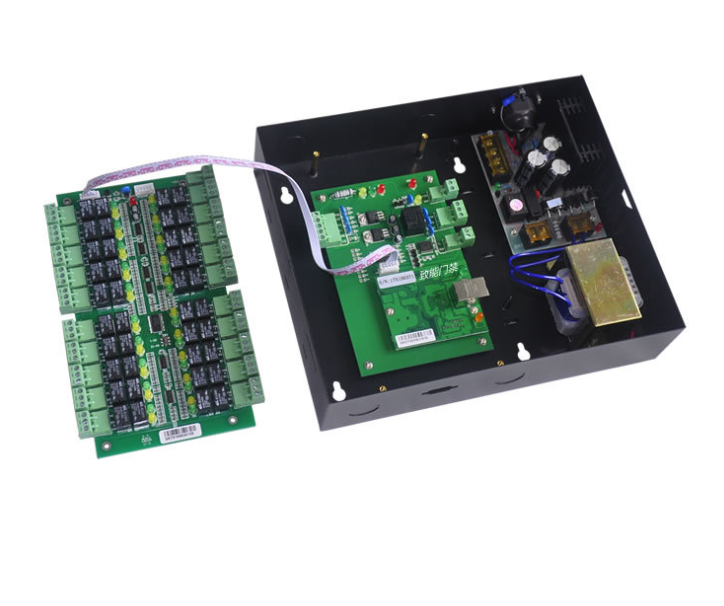

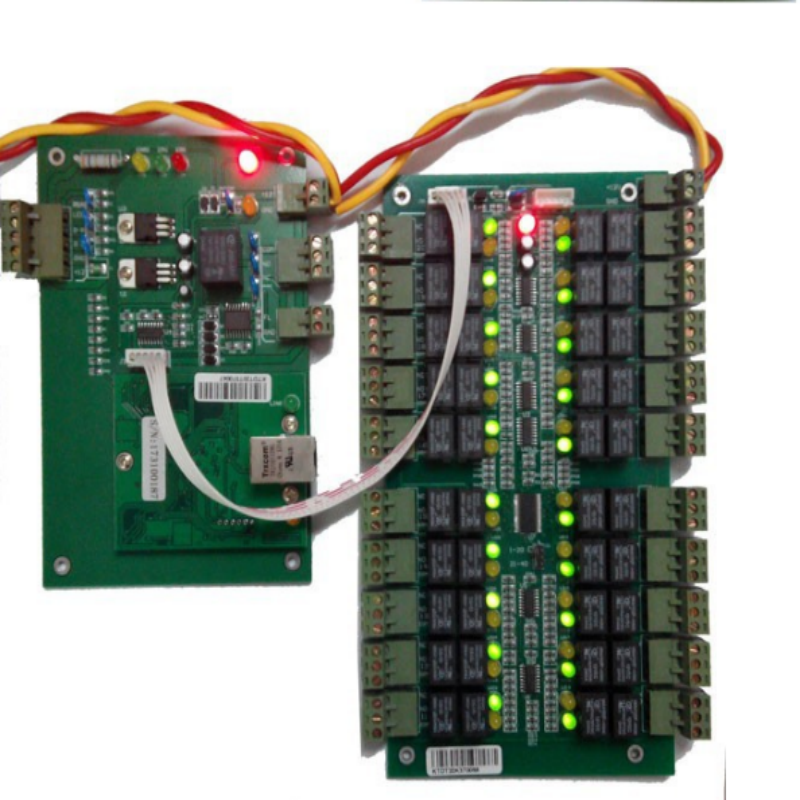

Our controller system is consist of main board+extended board which can have 20 floors and 40 floors elevator control
For 20 floors solutions it need 1 unit of main board+1 unit of extended board
For 40 floors solution it need 1 unit of main board+2 unit of extended board

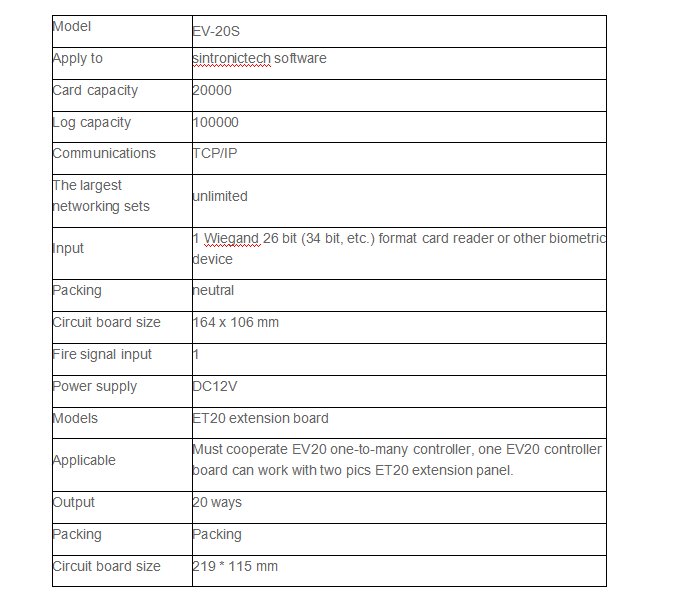

           2.Technical Parameters:

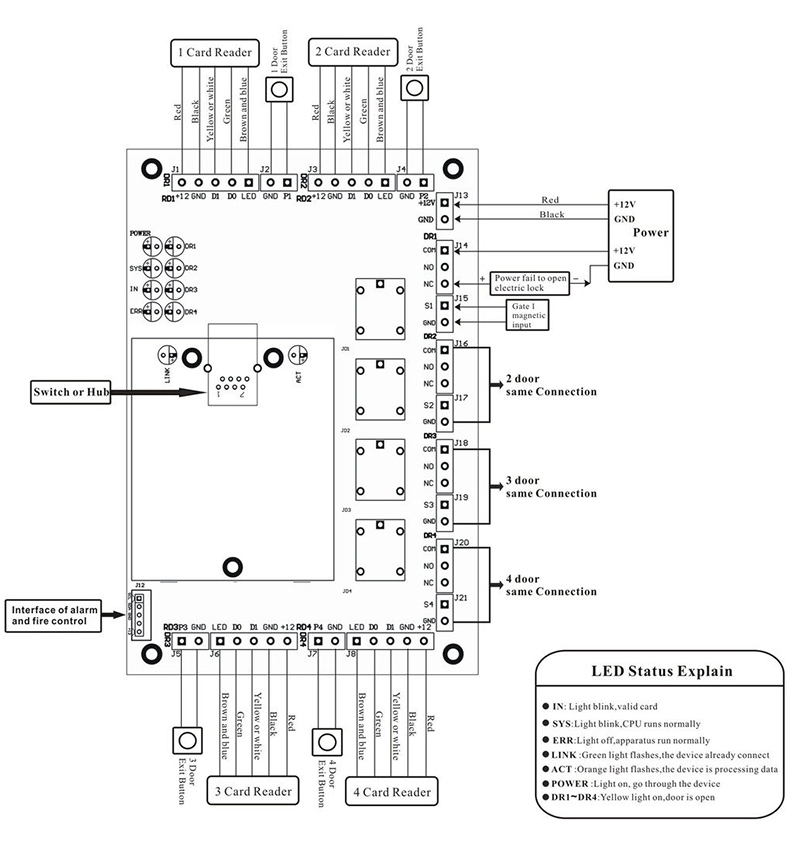

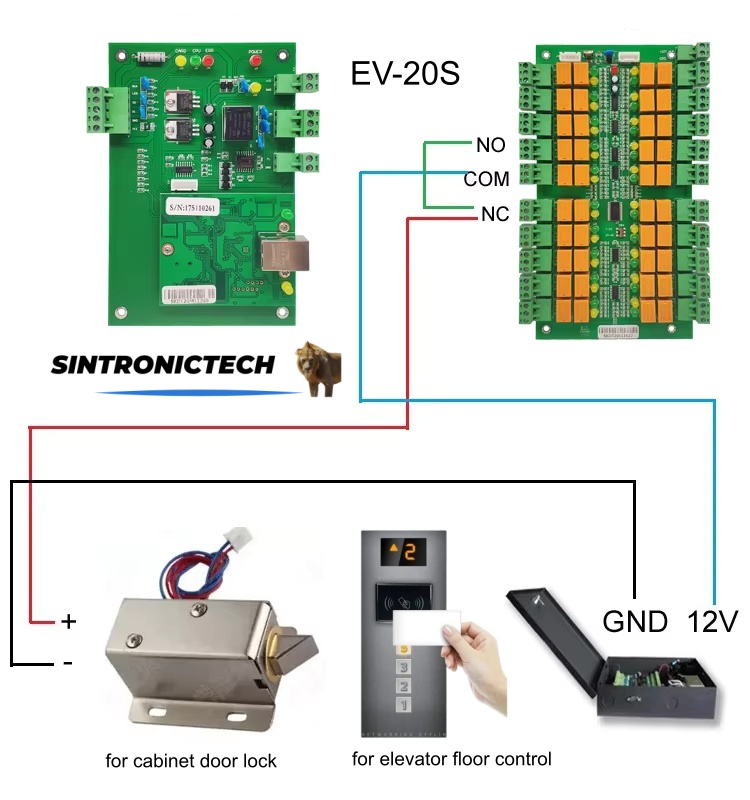

3.Wiring Diagram

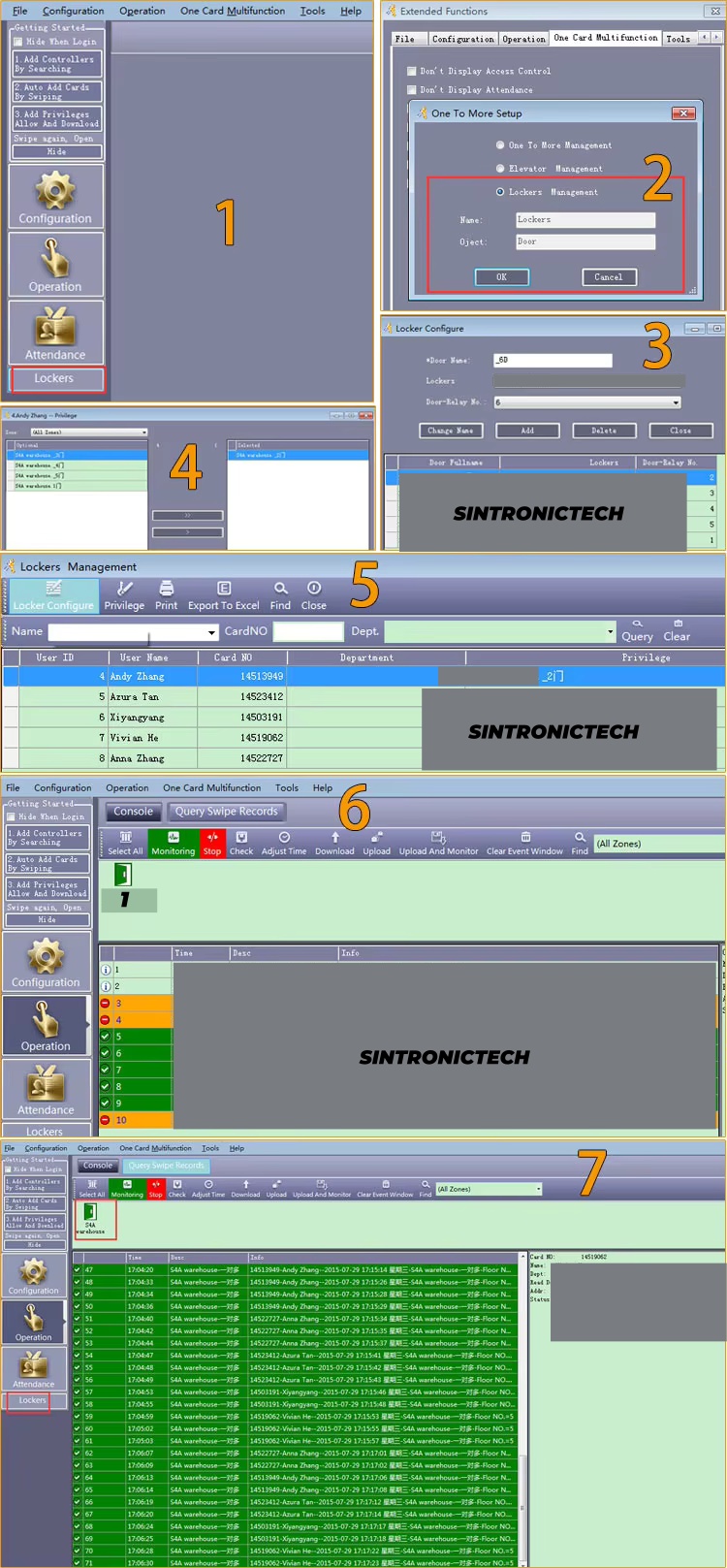

4.Free Software
