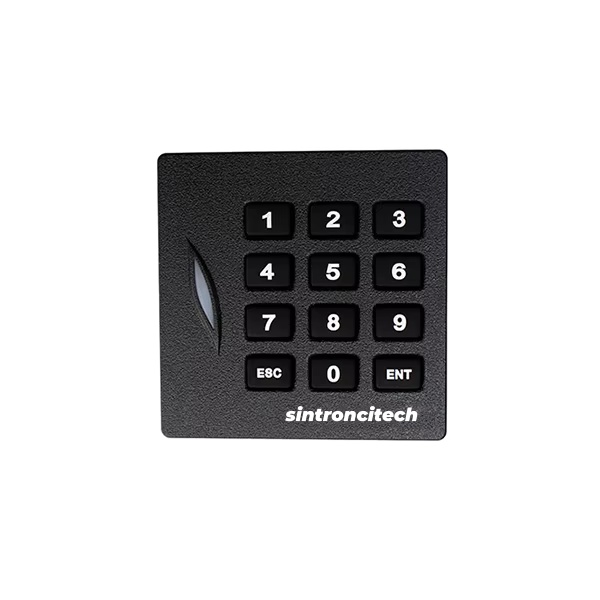

WG26,EM Card Reader
Power supply:DC12V
Waterproof:IP68

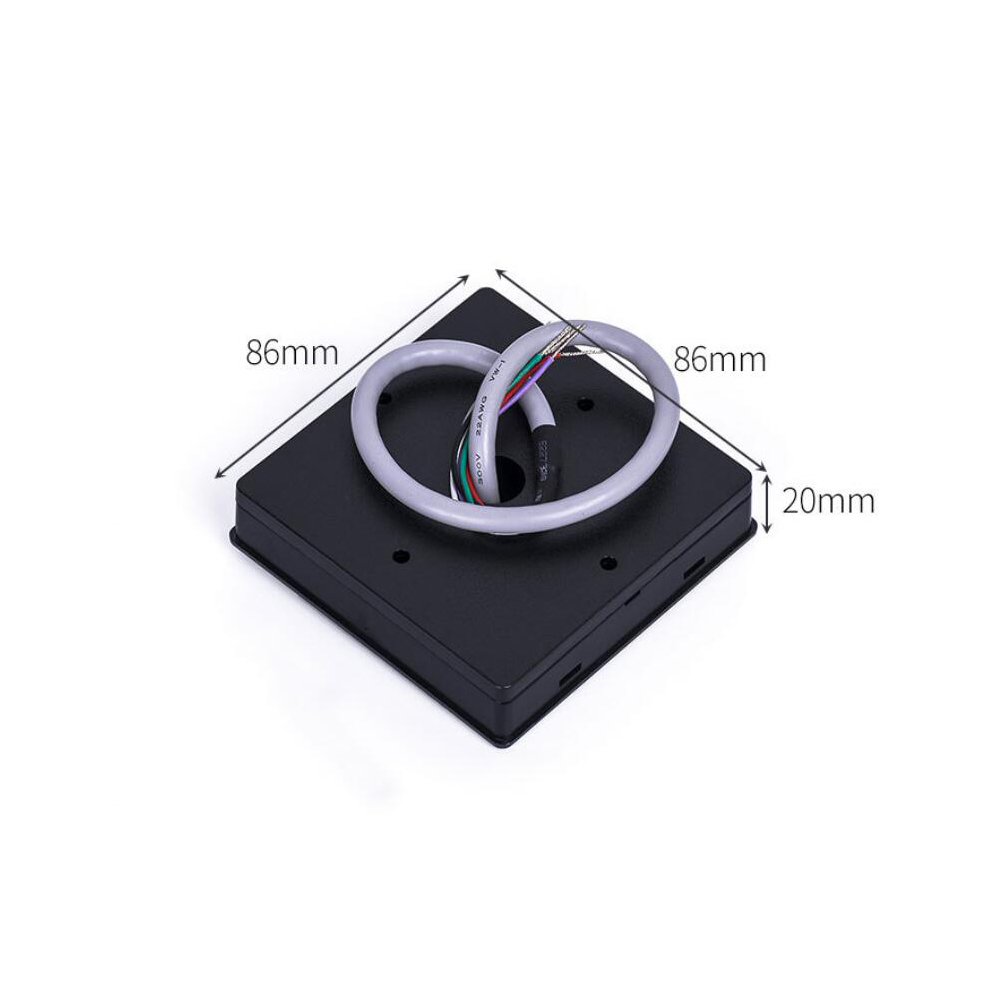

Size：86×86×18（mm）
Reading Time:≤200ms
Input Port:External LED Control,External Buzzer Control
Output Port:KR102E: 26/34bit Wiegand (Default)
Power/Current:DC12V / Max.70mm
LED:Red and Green LEDs
Operating Temperature:-20°C to 65°C(-10° to +70°C)
Material:ABS+PC with texture
Operating Humidity:10% to 90% relative humidity ,non-condensing
Beeper:Yes
We're professional Keypad Reader manufacturers and suppliers in China, We warmly welcome you to wholesale bulk in stock from our factory. For pricelist, contact us now.
RD-201 is adopting smart card technology, radio frequency communication technology, cryptography and other technologies to read and identify the user card, and transmit the user card information to the access control controller through the Wiegand protocol for processing
Feature
ID/IC card swipe verification
Advanced anti-crash circuit design, anti-surge protection, anti-misconnection protection.The buzzer sound is clear and loud, and will not be disturbed.
2.Wiegand 26/34
Support Wiegand 26 and Wiegand 34, just short the gray wire to ground or leave it in the air to switch between Wiegand 26/34

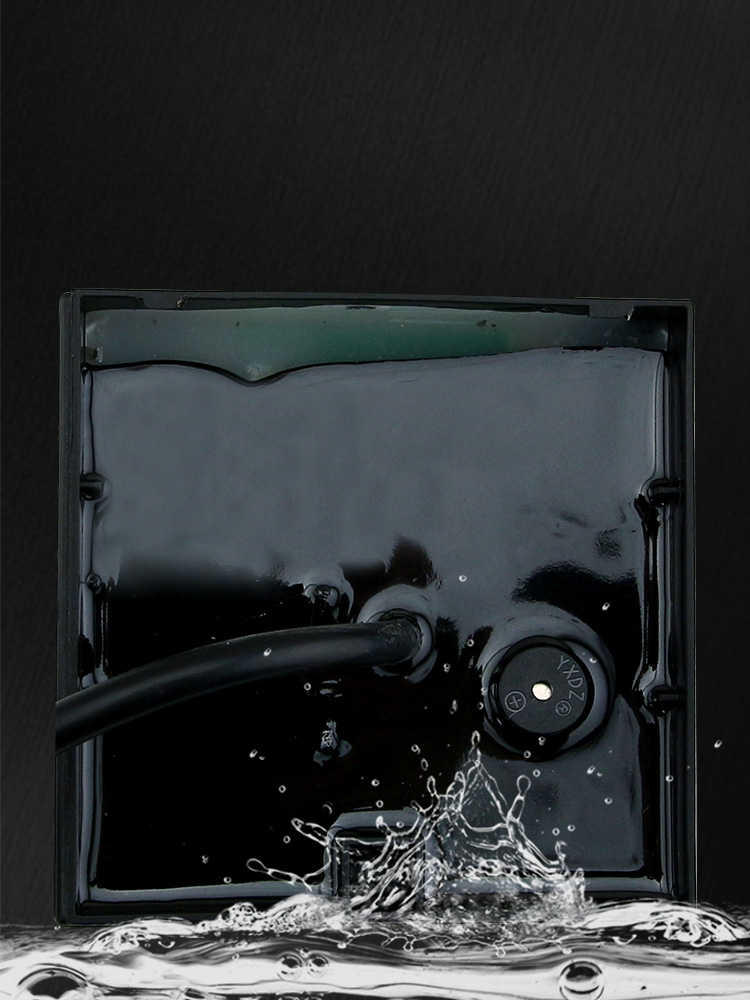

3.Internal waterproof design
Phillips screw at the bottom, easy to install; the output adopts glass discharge tube and semiconductor discharge circuit, which is resistant to electrostatic shock; the internal black resin glue package (can be effectively waterproof), can be used indoors and outdoors

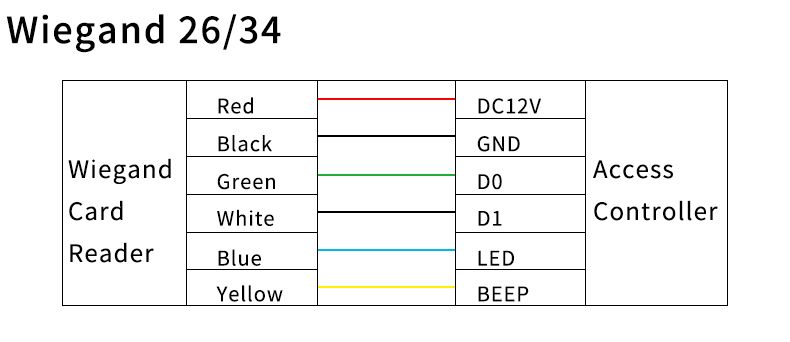

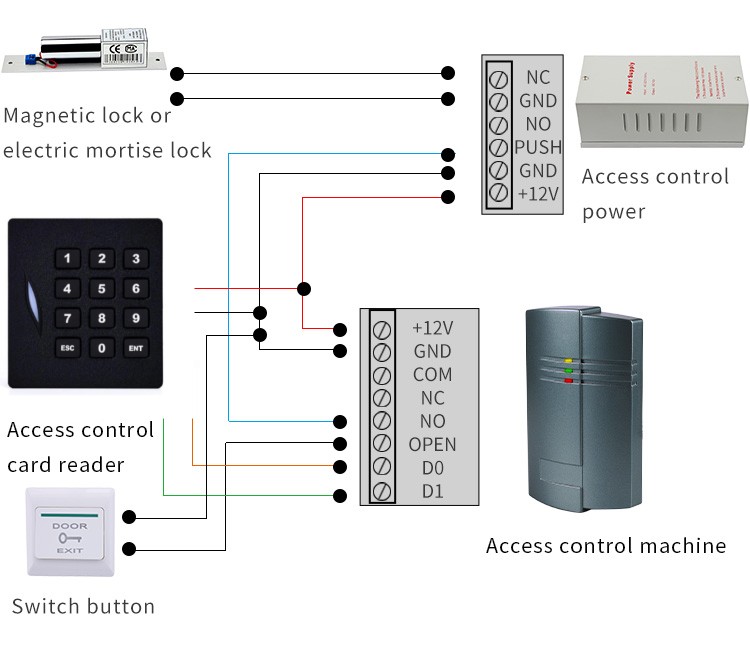

Wiring Diagram
