Waterproof and anti-disassembly
Material:ABS
Card Capacity:1000cards Control Type :EM card, APP
Reading Range:5-8cm
Operation Mode:Card, Card+Password
Working Voltage:12V DC+-10%
Can set up normal open period
We're professional WIFI Standalone Unit manufacturers and suppliers in China, We warmly welcome you to wholesale bulk in stock from our factory. For pricelist, contact us now.
SA-501WF is a standalone access control and proximity card reader which supports EM & MF card types. It builds-in STC microprocessor, with strong anti-interference ability,high security and reliability,powerful function and convenient operation. It’s widely used in high-end buildings, residential communities and other public places
Feature
1. The excellent design, surface waterproof keyboard, silver plating, fashion style.
2. The multi-function equipment.
3. The high and low temperature environment to use, surface waterproof.
4. The storage capacity of 2000 user card, 2000 user password.
5. Open three ways: card, password. Card and password.
6. Ultra-low power consumption: Standby current is less than 50 ma.
7. Keyboard: Be able to operate the keyboard.
8. Large capacity of users: support 2000 users.
9. Independent password (4 digitals).
10. Change password: The user can modify the code itself.
11. Identify speed: Swipe to open the door of time is less than 0.1 S.
12. Weigand26/34 output/ input (can connect a card reader and as a reader)
13. With bell,alarm button and time delay function (1-255s adjustable).

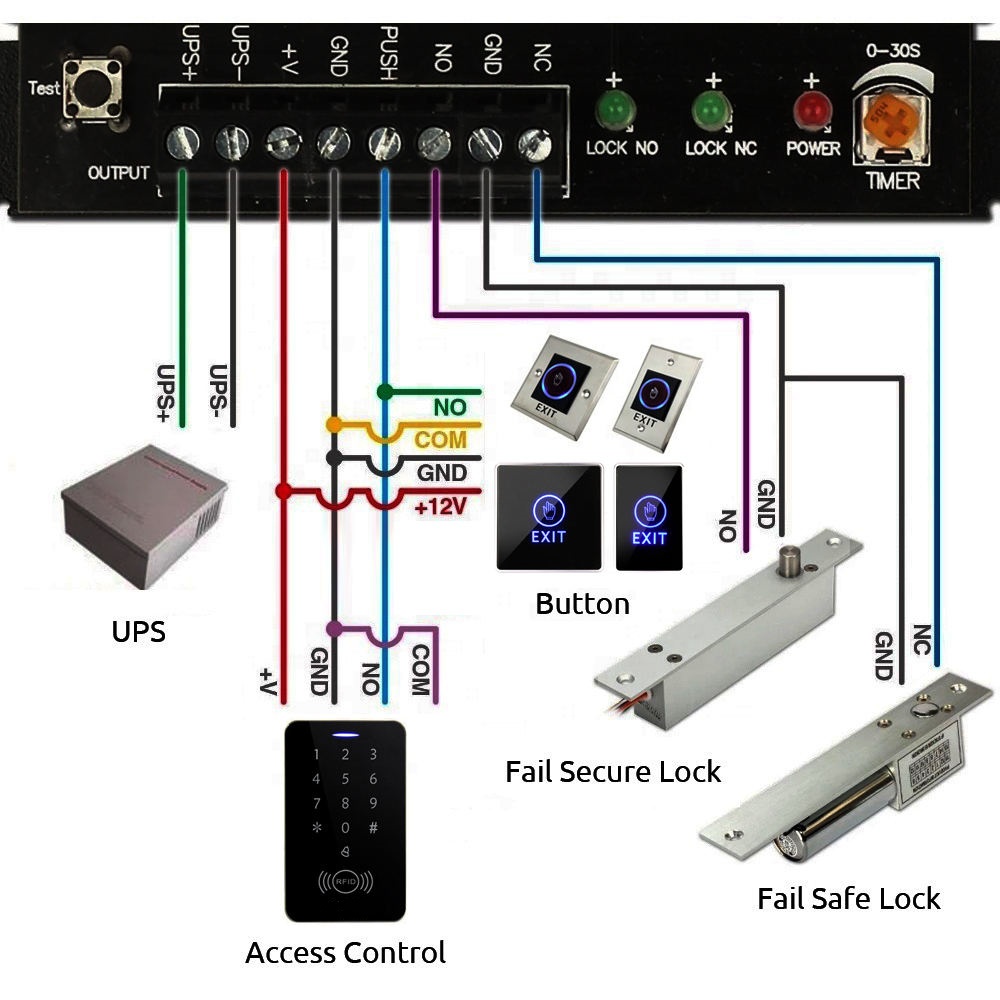

Wiring Diagram

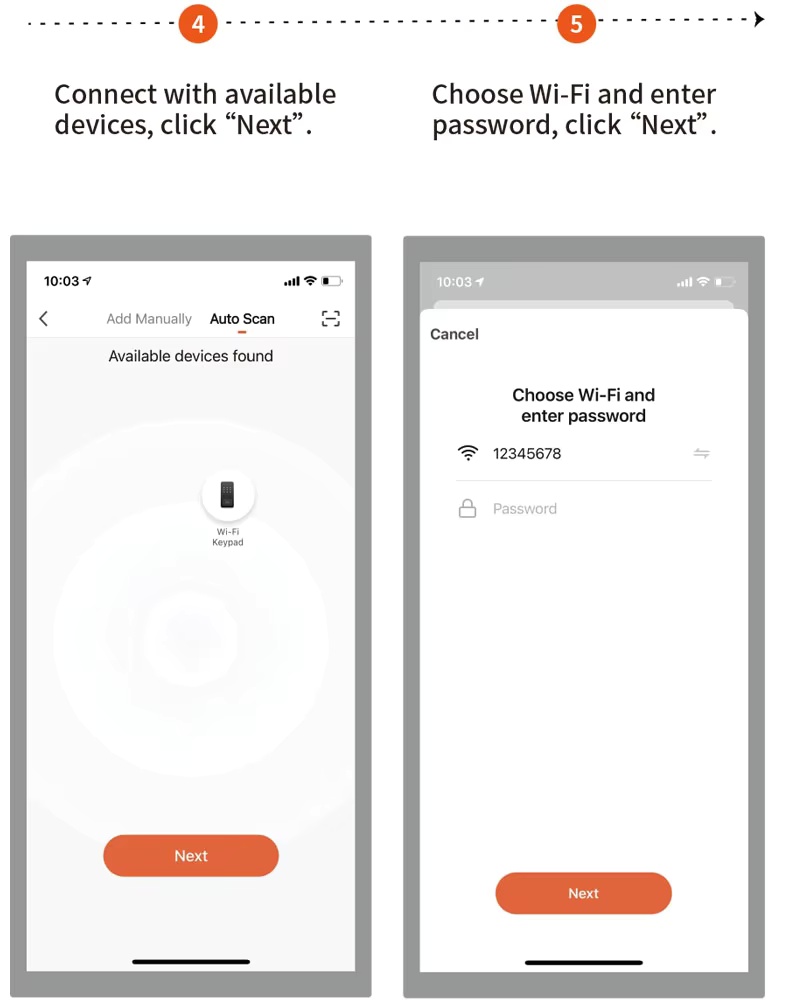

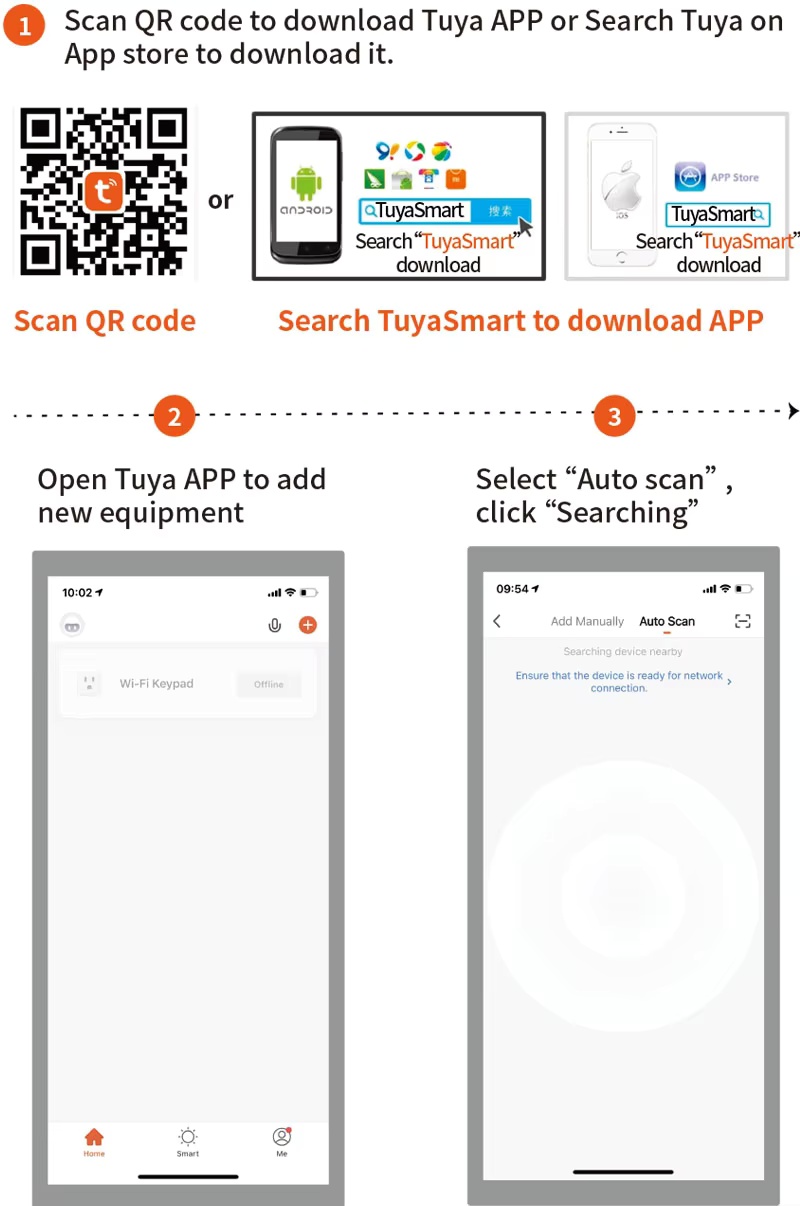

How to use the App
