Shenzhen Sintronic Technology Company Limited
Working temperature：-20 ~ +65℃
Specification：320*260*90mm
Operating voltage：AC 110～240V(rate 220V)
Net weight：3.5Kg
Communication mode：1 CAN-bus,2 RS485
Casing material:Cold steel stoving varnish
Communication distance:CAN：≤1000m（RVSP 2*1.0）
RS485：≤300m (CAT-5)
Single-RS485 capacity:25 (including sensor and LED signage)
Power consumption:≤2W (its power consumption, excluding parking sensor)
Quality Guarantee:12 month
We're professional Area Controller manufacturers and suppliers in China, We warmly welcome you to wholesale bulk in stock from our factory. For pricelist, contact us now.

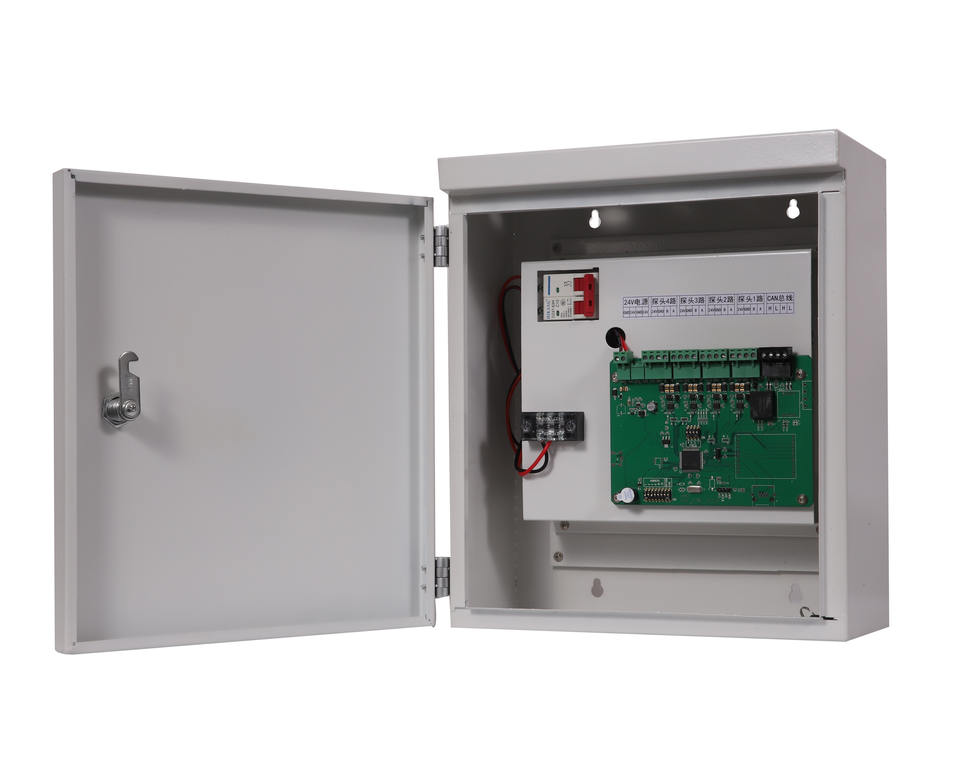

201AC is the core device for our parking guidance system to connect wiring in between parking guidance led display,parking sensor detector and cetral main controller is widly use in the parking lot for hospital, building,shopping mall, plaza, hotel , goverment administation center helping the visitor to have an convenience parking experience
Feature
1. The main controller receives the node controller and uses the .s485 industrial bus communication. The signal transmission distance can reach 1200 meters.
2. Node controller communication detector and guidance screen, use the RS485 industrial bus communication, the signal transmission distance can reach 1200 meters.

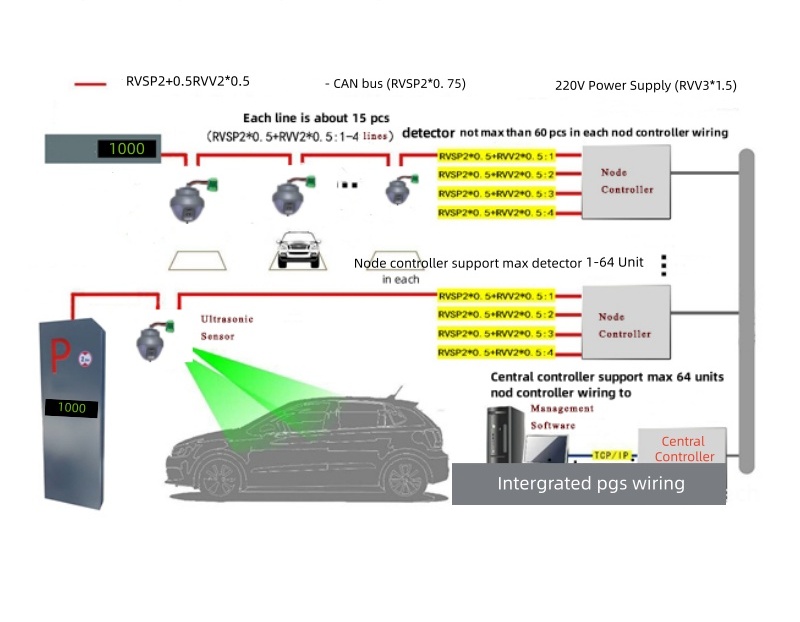

A:.Central controller can independent offline control and one unit of main control box can support max 64 units of nod control box
B:.Nod controller Each can be connected to 32 units ultrasonic parking guidance device (detectors and led display)
