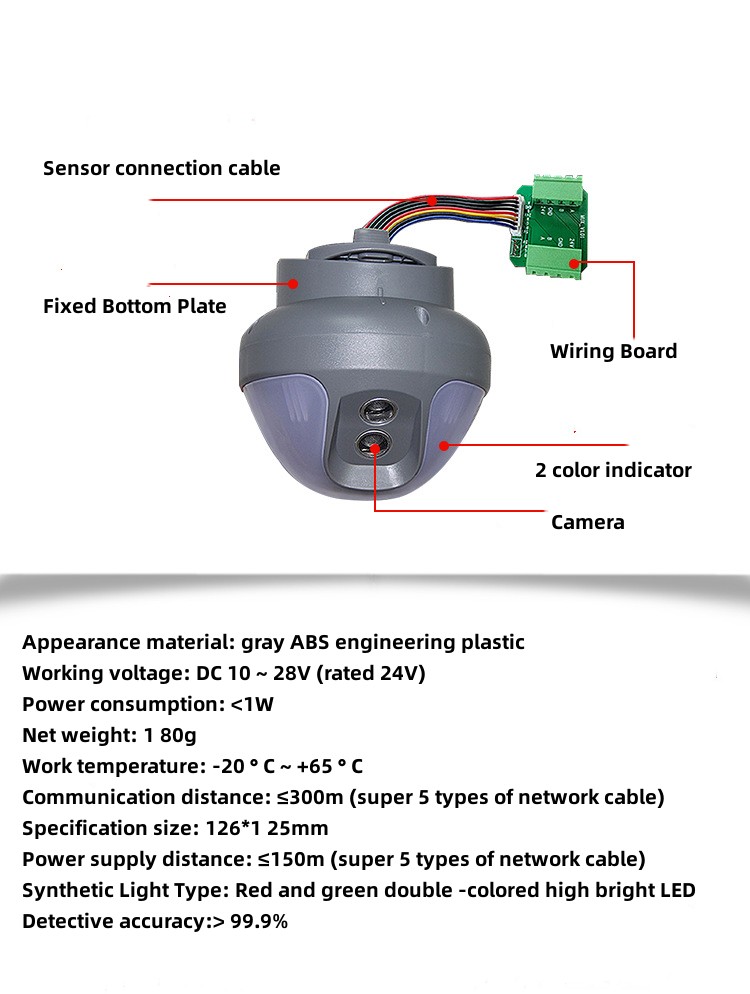

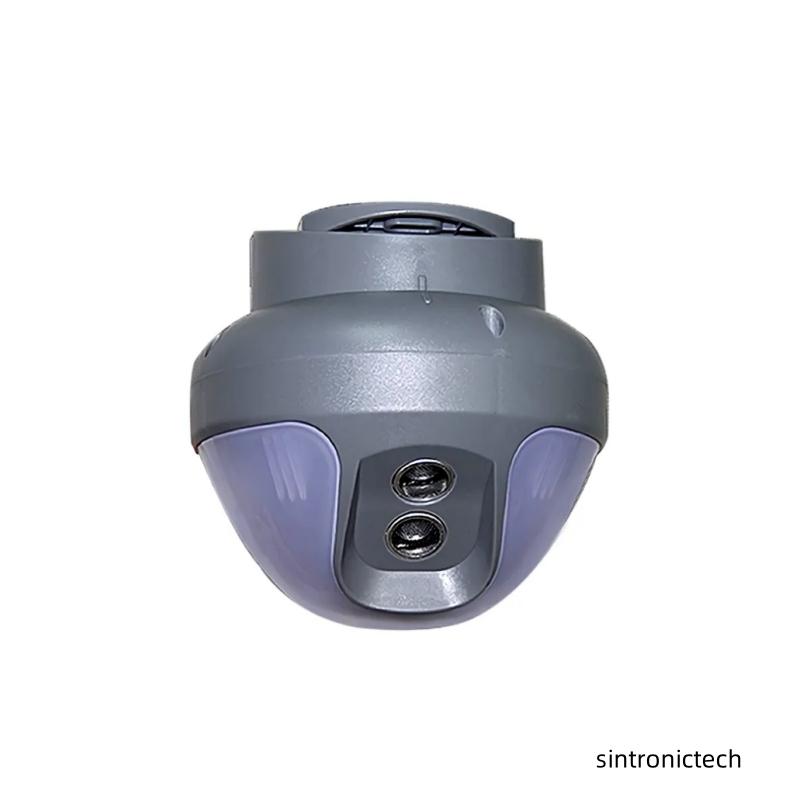

Integrated Detector

201DT is to use ultrasonic launch. It is a non -contact measuring instrument through the reflection of the measured object and the time difference after the return of the echo is received.

Feature
Primary characteristic
*Industrial -level design, adapt to various harsh environments,

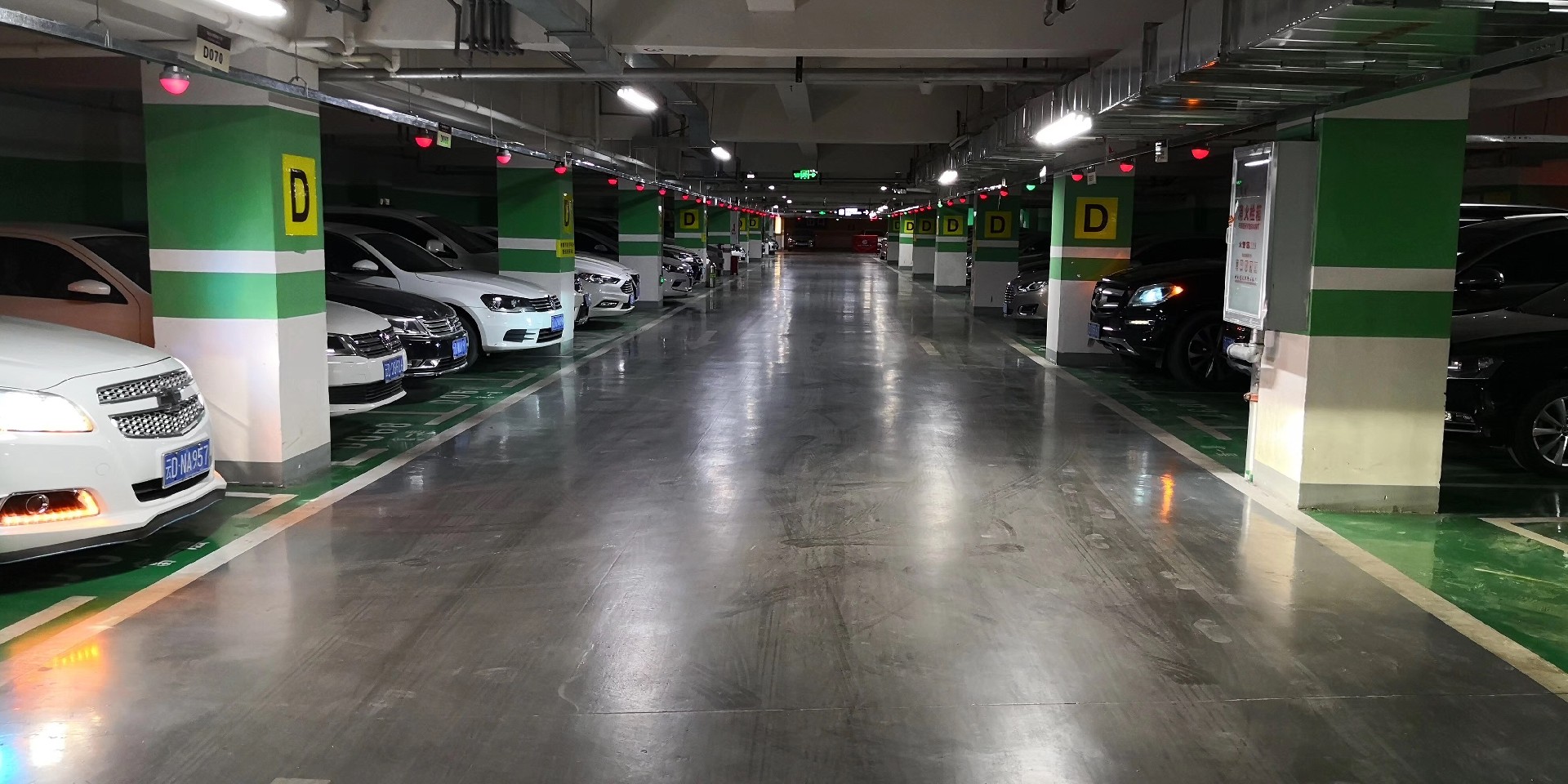

*Vehicles used in garage parking spaces have real -time inspection,.

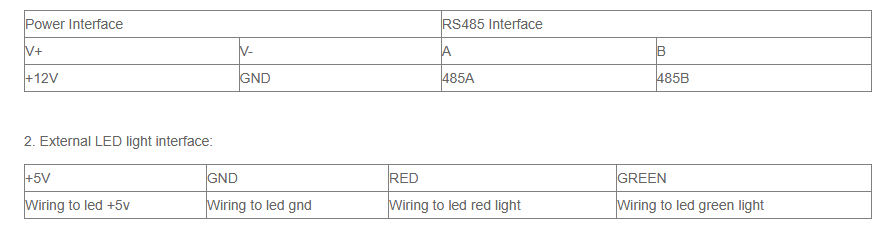

*Use RS485 communication bus,

Ultrasonic detector working status and indicator light status
A. After powering, the power indicator (Power/Red) is on,
1. When the ultrasonic sending or receiving of the detector is not normal, the status light
(State/green) Flash 15 times a second,
2. When the ultrasonic sending and receiving of the detector are normal, but there is no car, pass
Normally, the status light (State/green) flashes 3 times a second,
3. When the ultrasonic sending and receiving of the detector are normal, but there is no car, no
During the communication, the status light (State/green) flashes once in one second,
4. When the ultrasonic sending and receiving of the detector are normal, and there are cars,
Status light (state/green) has been on,
B. Flexible setting alarm distance (measured 0.3- -4.00 meters) see the jump line setting table.

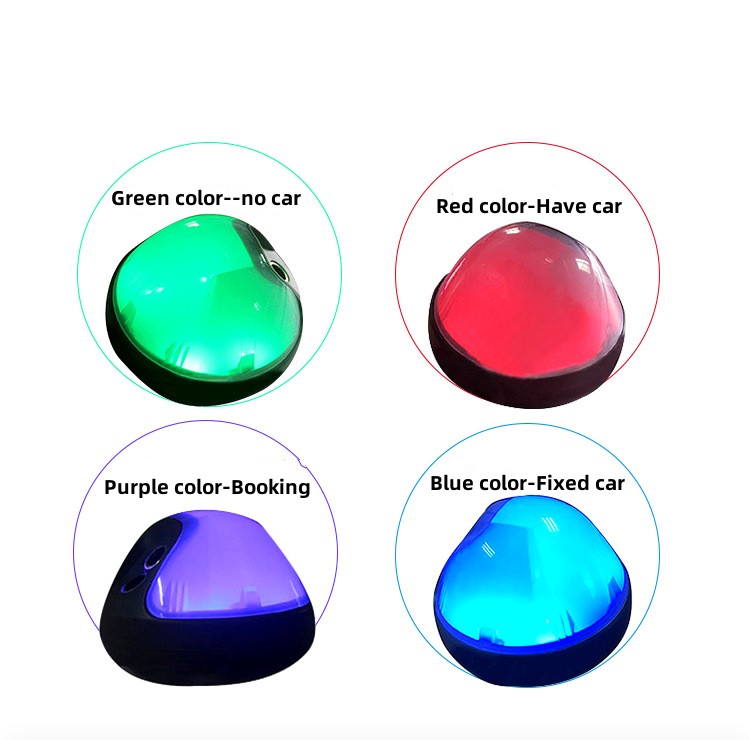

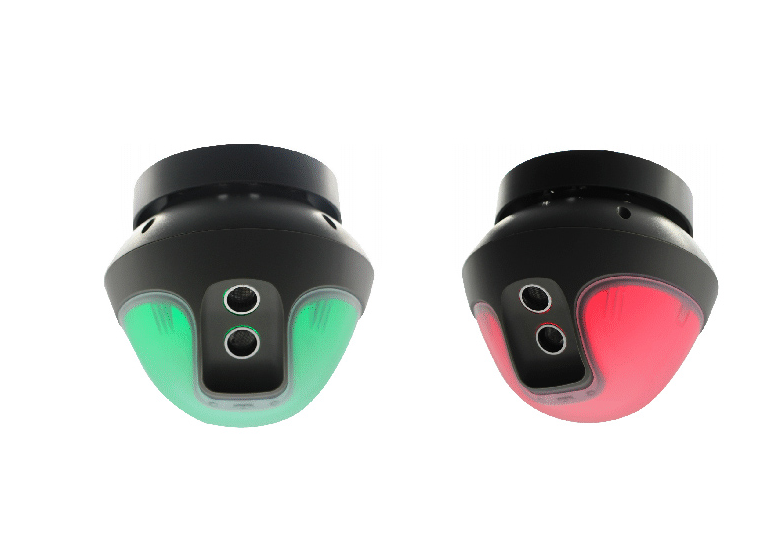

When the vehicle is in place and the determination distance is less than the preset distance,

the red LED light is on outside, otherwise the green LED light is turned on.

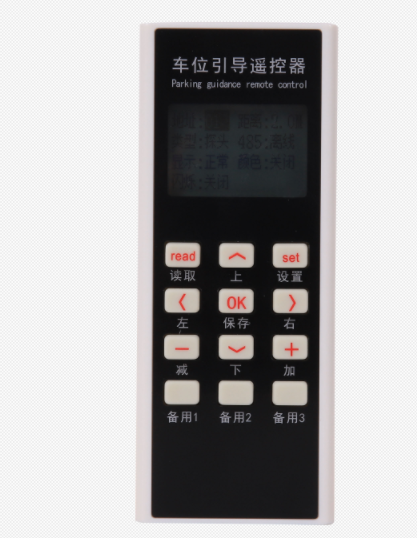

Remote Control Setting

Set the remote controller as an alternative to a DIP switch to remotely set the probe distance. The traditional DIP switch needs to go up and down the ladder to debug the probe when debugging, and the remote control remote setting only needs to hold the remote control under the probe to set.
