1. Detection procedure: level sensitivity adjustment, which can meet the needs of different occasions.
2. Personnel passing rate: more than 40 person-times per minute.
3. Power supply: 110-240V AC, 50/60Hz, power consumption: ≤18W.
4. Testing standard: one yuan coin
5. Display mode: 6-zone digital tube display
6. Working environment: -10℃~45 ℃, ≤95%RH.
7. Channel size: 1980 (height) * 700 (width) * 500 (depth) mm
8. Dimensions: 2220 (height) * 820 (width) * 580 (depth) mm
9. Packing size: door panel: 2280*570*210mm (2
pieces/carton) Main box: 770*530*260mm
We're professional 6 Zone Door Frame Metal Detector manufacturers and suppliers in China, We warmly welcome you to wholesale bulk in stock from our factory. For pricelist, contact us now.

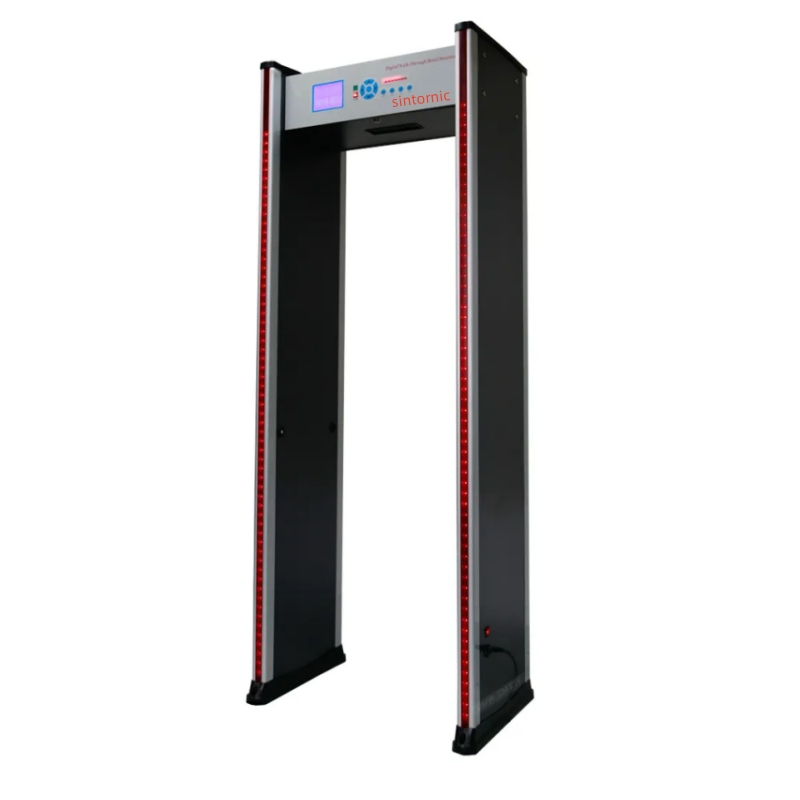

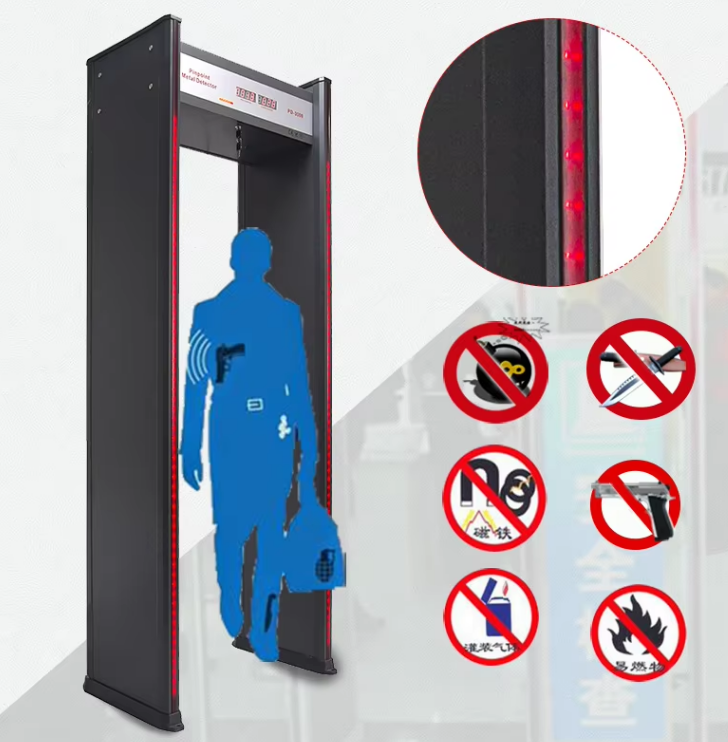

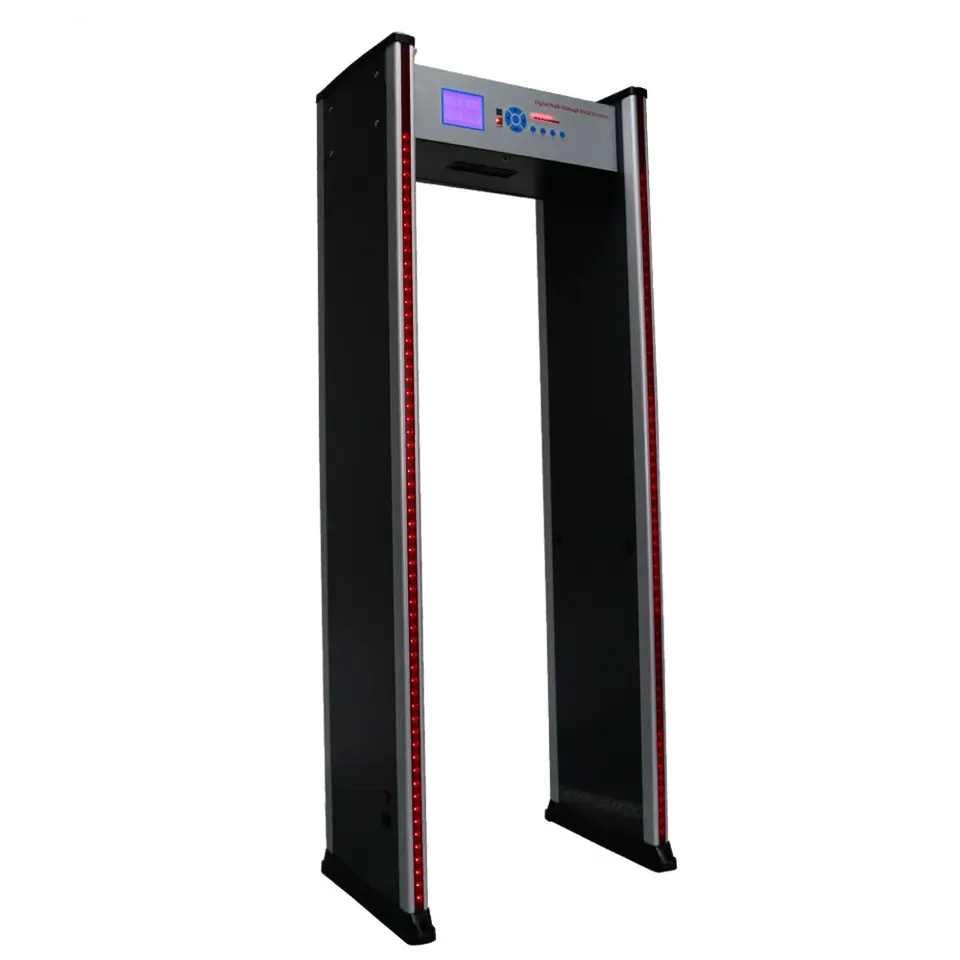

DF06 the "6 zones" of the security checkpoint refer to dividing the detection channel into 6 independent sensing zones along the vertical direction, and accurately locating metal objects at the approximate height position of the human body (such as feet, legs, waist, chest, etc.) through sound and light signals
1. Exact positioning
The TX is a multi-channel metal detector with six overlapping detection zones. The zones create a sequential sine-wave magnetic field within the detection area of the WTMD (Walk-through Metal Detector).
With overlapping construction, sensitivity differences are minimized when metal objects of different shape pass through the WTMD in various orientations.The product has a unique configuration of the transmit-receive coil. This provides double-side transmission and double-side reception performance. Then the equipment can position the detected object exactly and indicate the alarm position directly.
2. Microprocessor technology
Scanning speed of the electromagnetic wave created by microcomputer control circuit can be controlled exactly. According to requirements, user can set program by using control panel, which makes sure that sensitivity setting is flexible, reliable and stable.
3. Compound circuit design
The equipment has a counter that registers the number of persons passed through and the number of alarms. The counter uses Photoelectric Beam Detector, which can respond quickly and sends the identifiable signal to computer, then decreases the false alarms, the unwanted alarms and false counting.
4. DSP technology
The equipment uses digital signal processor to get reliable function of the metal detector, versatile features, and user friendly operation. In addition, this provides the best interference immunity.
5. Adjustable sensitivity
There is 100-step adjustable sensitivity in each detecting zone, and user can define the sensitivity of each individual zone and system-level sensitivity according to application required.
6. Password protection
System password is 4 digital, which can be set by user. ONLY the password has been inputted correctly that user can change program, sensitivity and other parameters.
7. Serial communication
The equipment can connect to computer through the retained data communication interface (RS-485, RS-232).
8. Modular design
With modular design, the equipment is installed easily and user can remove the faults quickly.
9. The best anti-impact performance
The equipment has the best anti-impact performance under the condition that nobody passes through the WTMD.
10. Electromagnetic sine wave field technology
Transmitter sine-wave causes decaying eddy currents in metal objects inside the sensing area of the WTMD. The
signal induces to the receiver by the eddy currents is sampled and processed in the electronics unit.
