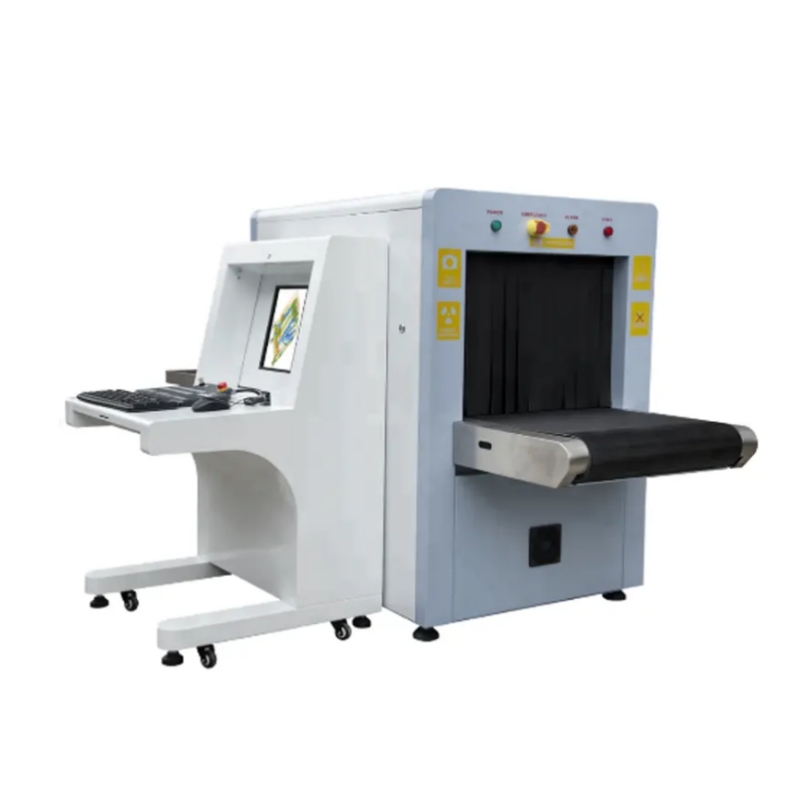

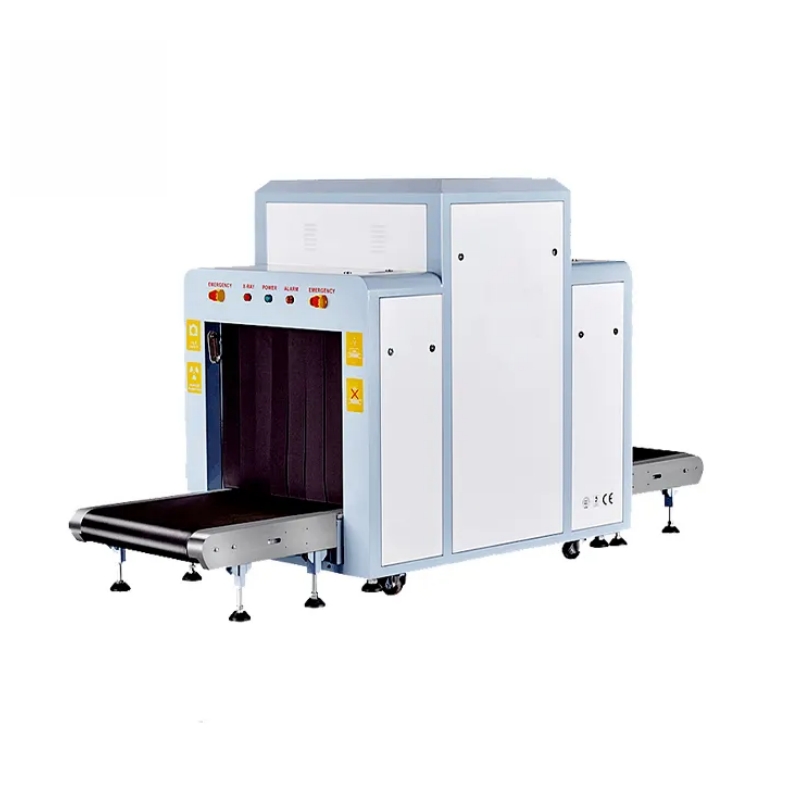

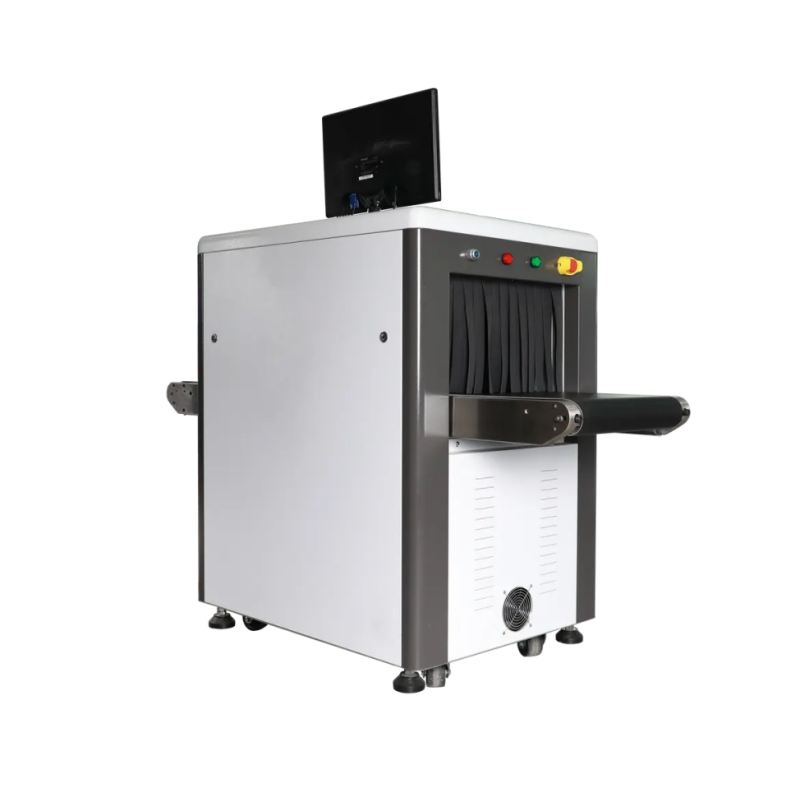

X Ray Baggage Scanner

X series Baggage Scanning Machine uses a multi-energy detector and a digital image processing system comparable to

 the world's top products in the world to detect items with stable and reliable performance.

Advantages:

Fully leading: The first all-digital security inspection machine in China, from signal reception to image display, all-digital signal transmission and processing, strong anti-interference ability and clear images.
Unique system: Embedded Linux operating system, using multi-core ARM, simple architecture, extremely low power consumption, energy saving and environmental protection, and with real-time status monitoring function, to keep track of the equipment working process.
Environmental protection and energy saving: The machine can automatically sense objects, put the luggage on the machine and start running, and the machine is stationary without luggage. (Optional)
Stable and reliable: product production has passed strict high and low temperature test, damp heat test and vibration test to ensure continuous operation without failure
One-key shutdown control: only need to turn the key when shutting down, the equipment will automatically and safely shut down, reducing equipment failure
High-end components: It adopts high-end high-end brands such as the Sens-Tech acquisition system imported from the United Kingdom, the original Hamamatsu detector, and the digital ray source. The quality and performance are stable and the highest configuration in China.

Image Processing System:

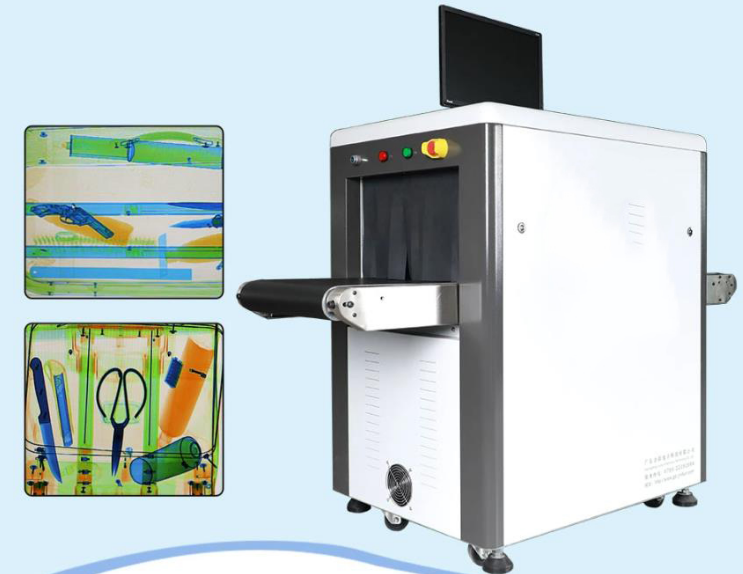

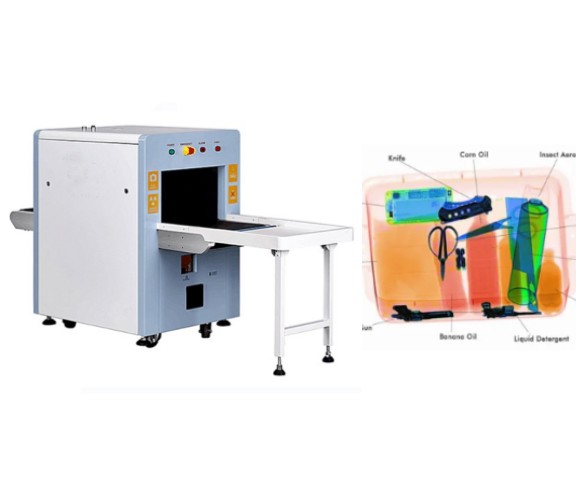

Multi-energy color:  organic matter is shown in orange, inorganic is shown in blue, and mixture is shown in green
High energy / low energy :  Two energy switching display.
Drug Explosives Assisted Detection:  More helpful in detecting dangerous goods such as some typical explosives.
1, X-ray sensor: L-shaped photodiode array detector (multi-energy), 12-bit depth.
2, Display: high resolution 22 inch LCD monitor.
3, Color image display: 24-bit true color display according to material material.
4,Edge enhancement: the outline of the object is clearer.
5, Super Image Enhancement: Image details are clearer.
6, High penetration display: Improve the contrast of bright areas in the image, making the easy-to-penetrate area clearer.
7, Low penetration display: Improve the contrast of dark areas in the image, making the difficult-to-penetrate area clearer.
8, Magnifying glass: partial zoom function, real-time dynamic zoom.
9, Brighten/Darken: Increase the brightness of the image/darkness of the image.
10, Image pull back / front pull: display the first 20 images, and can perform any image processing on the image.
11, Image restoration: Image display returns to its original state.
12, Image storage: save any image in real time, and can perform arbitrary image processing and save it continuously.
