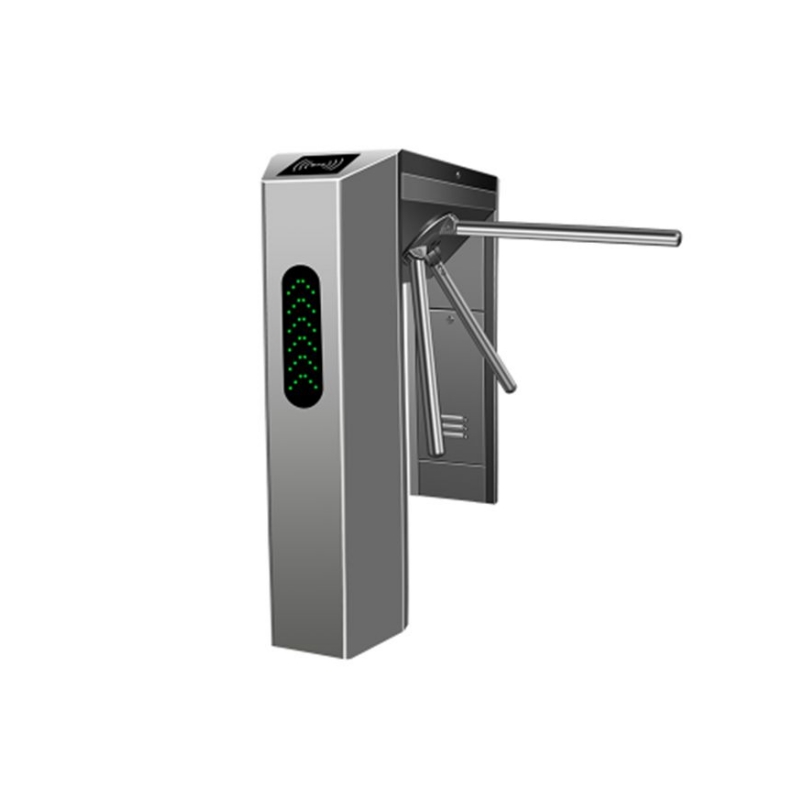

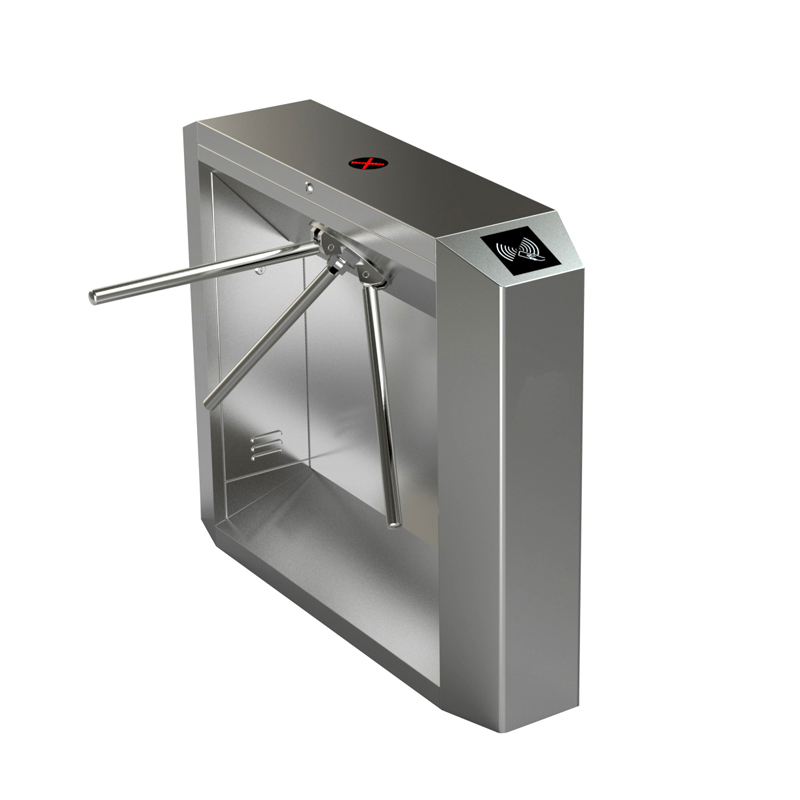

Long Bridge Tripod Turnstile

TG Series tripod mainly used for crowd control and ticket inspection in places such as stations, subways, scenic spots, factories, etc. It achieves authorized personnel access through integrated access control and attendance systems, suitable for temperature range of -20 ℃~60 ℃, supports one-way or two-way access modes, and has a speed of up to 30 people/minute

Feature

1.Running stable without noise and mechanical impact
2. The passing person number of the persons can be set
3.Several ways of working molds for you to choose
4. Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board.
5.Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection.
6. Direction-guide lights in the turnstile to tell you whether the direction to go or not.
7.The standard electrical interface connected with various kinds of reader and writer equipment, RS485 Communication interface, Relay interface, Level interface
8.All the functions realized in one integration machine and controlled and managed by the computer in the far distance
9.The number of the persons passed by can be counted automatically which can also be displayed in LED
10. Beam can be lifted and fall when power is cut-off, arms auto rise up when power on and auto stop on obstacle
11. The function with or without card-reading memory can be set according to your demand.
12. Self-check and alarm for coinventing to operate
13.With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.
14.Each machine can be set by Physical Address (Optional).
15. Equipped with free control software for man-machine interface & control command SDK .

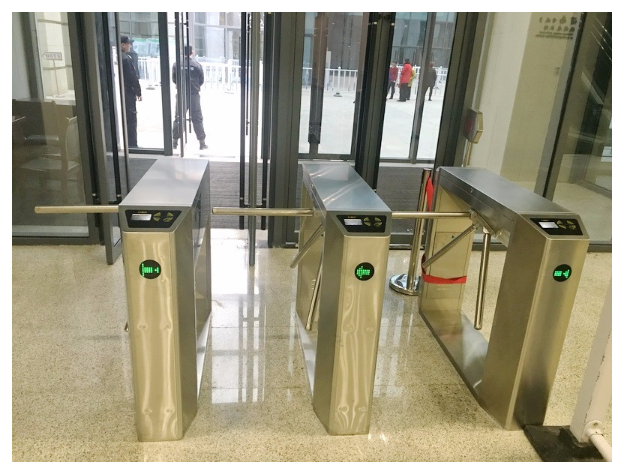

User Case
